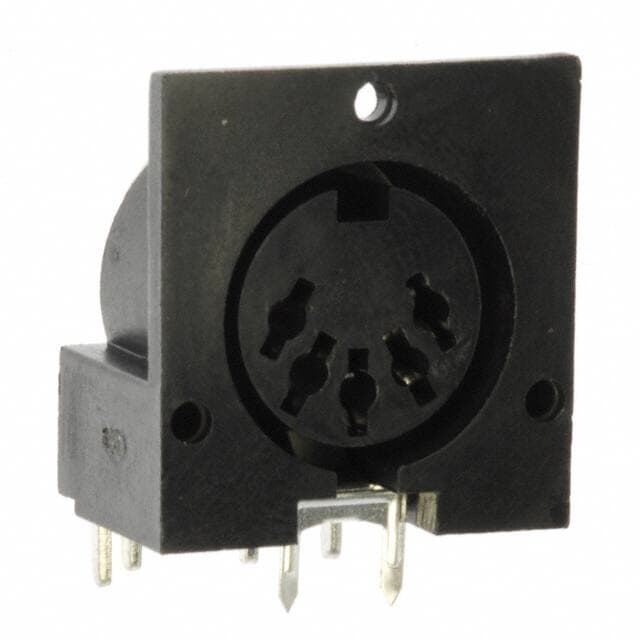

CUI SDS-50J
CUI SDS-50J

CUI SDS-50J

Manufacturer No:

SDS-50J

Manufacturer:

CUI

Package:

Description:

Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 5 Positions Solder Tin Tray Keyed Push-Pull

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SDS-50J information

CUI SDS-50J technical specifications, attributes, parameters and parts with similar specifications to CUI SDS-50J.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Number of Pins
  • 7
  • Insulation Material
  • Plastic
  • Shell Material
  • Polybutylene Terephthalate (PBT)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Series
  • SDS-J
  • Published
  • 2011
  • Feature
  • Ground
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 5
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 100VAC
  • Voltage - Rated DC
  • 24V
  • Contact Finish - Mating
  • Tin
  • Current Rating (Amps)
  • 2A
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Current Rating
  • 2A
  • Shell Size - Insert
  • DIN 180 Degree
  • Lead Pitch
  • 1.3mm
  • Number of Contacts
  • 5
  • Housing Color
  • Black
  • Height
  • 21.1mm
  • Width
  • 20mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for CUI SDS-50J.

Datasheets:

SDS-50J Overview


The packaging contains Receptacle, Female Sockets.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number SDS-J belongs to the SDS-J Series.A 7 pin is provided on the device.Whenever the temperature is below 85°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Ground feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~85°C.

SDS-50J Features


SDS-J series


SDS-50J Applications


There are a lot of CUI Devices
SDS-50J Circular Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
