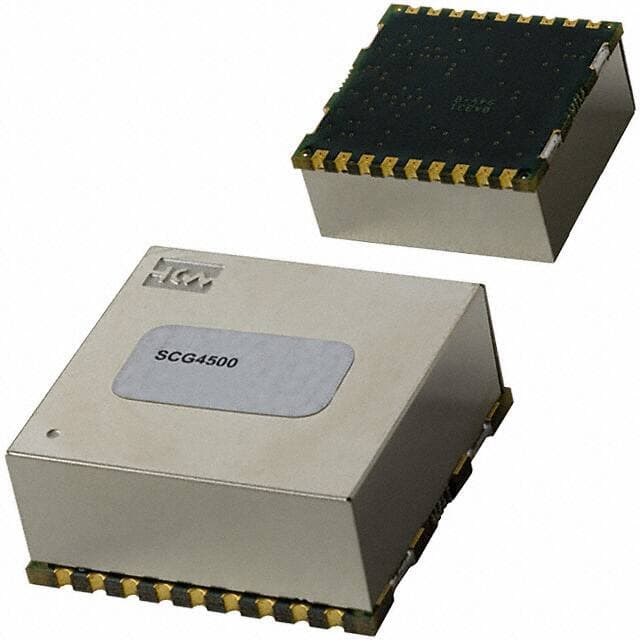

Connor-Winfield SCG4500-155.52M

Manufacturer No:

SCG4500-155.52M

Manufacturer:

Connor-Winfield

Package:

18-SMD Module

Description:

3.3V Clock Generator 155.52MHz Clock Generators 18-SMD Module 18 Terminals Surface Mount 3.135V~3.465V Tube

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCG4500-155.52M information

Connor-Winfield SCG4500-155.52M technical specifications, attributes, parameters and parts with similar specifications to Connor-Winfield SCG4500-155.52M.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
18-SMD Module

Operating Temperature
0°C~70°C

Packaging
Tube

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
18

Type
Clock Generator

Applications
SONET

Voltage - Supply
3.135V~3.465V

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
217

Number of Functions
1

Supply Voltage
3.3V

Frequency
156MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
LVPECL

Qualification Status
Not Qualified

Number of Circuits
1

Frequency (Max)
155.52MHz

Ratio - Input:Output
3:2

Differential - Input:Output
No/No

Height
11.4mm

Length
27.2mm

Width
26.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Connor-Winfield SCG4500-155.52M.

SCG4500-155.52M Overview

As a clock IC, PLLs is packaged using the Tube method. This clock generator is embedded in the 18-SMD Module package. Under reflowing process, this clock generator ic is able to sustain a maximum temperature of 217. 18 terminations can be found in frequency synthesizer. Basically, a voltage of 3.3V should be applied to this electronic frequency generator. CMOS is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 155.52MHz Max. This component can be conveniently installed on the panel thanks to the Surface Mount. Clock PLL works with 3.135V~3.465V supply voltage provided. The ambient temperature should be set at 0°C~70°C, which is estimated by the test statistics. This is a clock generator compatible with LVPECL logic levels. This electronic component can be classified as a Clock Generator. Frequency generator is able to reali156MHze high efficiency when operating at a frequency of 156MHz. SONET is a possible application for the clock generators.

SCG4500-155.52M Features

Available in the 18-SMD Module
Supply voltage of 3.3V

SCG4500-155.52M Applications

There are a lot of Connor-Winfield
SCG4500-155.52M Clock Generators applications.

Instrument
Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
