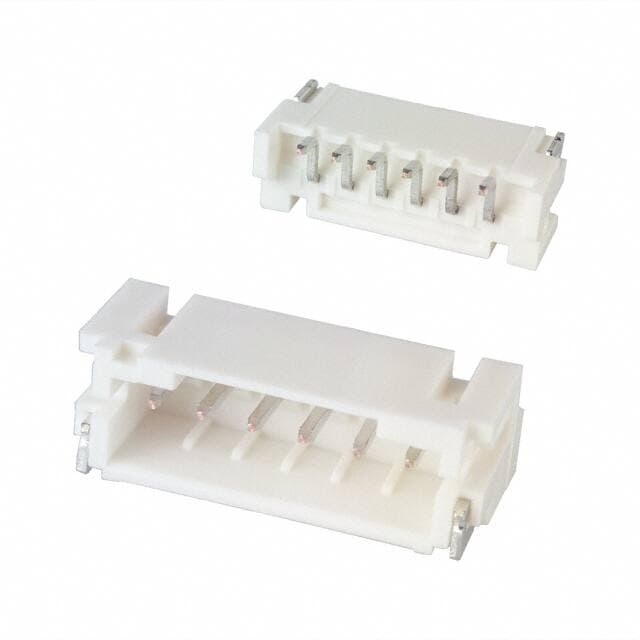

JST S6B-PH-SM4-TB(LF)(SN)

Manufacturer No:

S6B-PH-SM4-TB(LF)(SN)

Manufacturer:

Package:

Description:

PH Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA6T), Nylon 6T Board to Cable/Wire 0.217 5.51mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S6B-PH-SM4-TB(LF)(SN) information

JST S6B-PH-SM4-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S6B-PH-SM4-TB(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Polyamide

Weight
28.349523g

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
PH

Published
2004

JESD-609 Code
e3

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Color
White

Number of Rows
1

Gender
Male

Additional Feature
SIDE ENTRY

Voltage - Rated DC
100V

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
6

Orientation
Right Angle

Depth
7.6mm

Insulation Height
0.217 5.51mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
2A

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Number of Conductors
ONE

Voltage - Rated AC
100V

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
1

Lead Pitch
2mm

Download datasheets and manufacturer documentation for JST S6B-PH-SM4-TB(LF)(SN).

Datasheets:

adafruitindustriesllc-2566-datasheets-6882.pdf

S6B-PH-SM4-TB(LF)(SN) Overview

Packaging is in the form of Header.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the PH Series.Other features include SIDE ENTRY, to name just a few.Several benefits come from the Solder Retention feature.There is a mounting hole at Surface Mount.Devices operate at -25°C~85°C operating temperatures.
