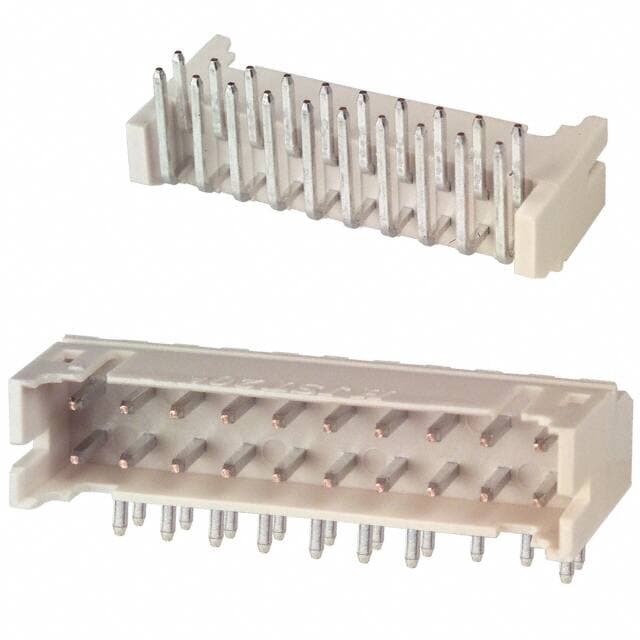

JST S20B-PHDSS(LF)(SN)
JST S20B-PHDSS(LF)(SN)

JST S20B-PHDSS(LF)(SN)

Manufacturer No:

S20B-PHDSS(LF)(SN)

Manufacturer:

JST

Package:

Description:

PHD Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 20-Position Board to Cable/Wire 0.197 5.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S20B-PHDSS(LF)(SN) information

JST S20B-PHDSS(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S20B-PHDSS(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA), Nylon, Glass Filled
  • Housing Material
  • Nylon
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • PHD
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 20
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Additional Feature
  • SIDE ENTRY, LOW PROFILE
  • Fastening Type
  • Detent Lock
  • Contact Finish - Mating
  • Tin
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Insulation Height
  • 0.197 5.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.079 2.00mm
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 2mm
  • Contact Length - Mating
  • 0.114 2.90mm
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Natural
  • Height
  • 9.5mm
  • Length
  • 21.9mm
  • Width
  • 5mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for JST S20B-PHDSS(LF)(SN).

Datasheets:

S20B-PHDSS(LF)(SN) Overview


The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the PHD Series.Among other features are SIDE ENTRY, LOW PROFILE, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -25°C~85°C.

S20B-PHDSS(LF)(SN) Features


PHD series


S20B-PHDSS(LF)(SN) Applications


There are a lot of JST Sales America Inc.
S20B-PHDSS(LF)(SN) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
