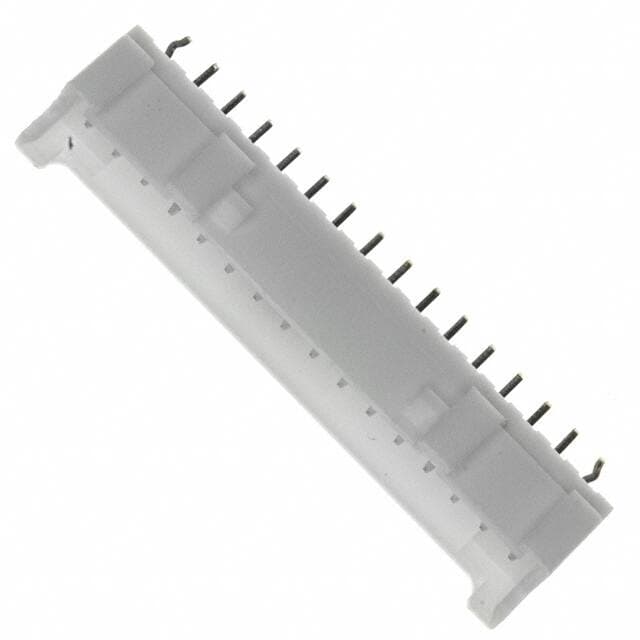

JST B16B-PASK-1(LF)(SN)

Manufacturer No:

B16B-PASK-1(LF)(SN)

Manufacturer:

Package:

Description:

PA Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 16-Position Board to Cable/Wire 0.303 7.70mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B16B-PASK-1(LF)(SN) information

JST B16B-PASK-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B16B-PASK-1(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
PA

Published
2005

JESD-609 Code
e3

Feature
Board Guide

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Kinked Pin, Solder

Connector Type
Header

Number of Positions
16

Number of Rows
1

Voltage - Rated
250V

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Terminal Pitch
2mm

Insulation Height
0.303 7.70mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Contact Length - Post
0.118 3.00mm

Shrouding
Shrouded - 4 Wall

Contact Length - Mating
0.126 3.20mm

UL Flammability Code
94V-0

Housing Color
White

Overall Contact Length
0.319 8.10mm

Stack Height (Mating)
9.9mm 14.7mm 14.9mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST B16B-PASK-1(LF)(SN).

Datasheets:

jstsalesamericainc-spal001tp05-datasheets-3025.pdf

B16B-PASK-1(LF)(SN) Overview

The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the PA Series.There are a number of advantages to its Board Guide feature.Part Through Hole is mounted to the part.As a result, the device runs at -25°C~85°C Operating Temperature.

B16B-PASK-1(LF)(SN) Features

PA series

B16B-PASK-1(LF)(SN) Applications

There are a lot of JST Sales America Inc.
B16B-PASK-1(LF)(SN) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
