RICHTEK RT8024GB

Manufacturer No:

RT8024GB

Manufacturer:

RICHTEK

Package:

SC-74A, SOT-753

Description:

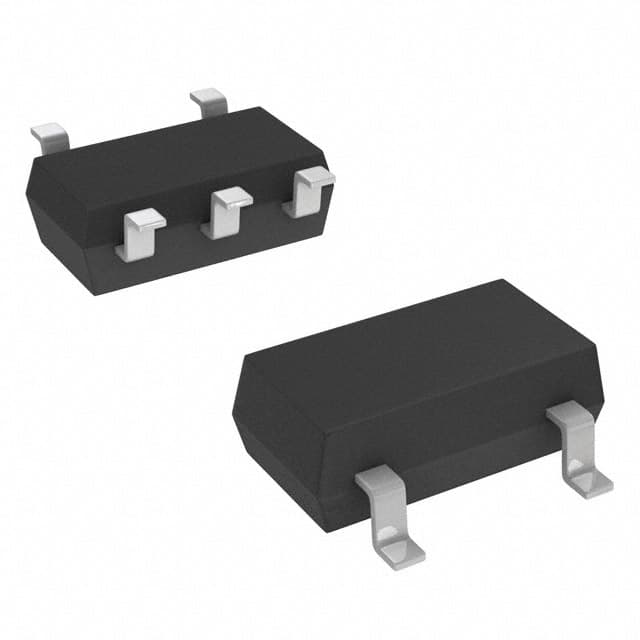

2.5V 5-Pin DC DC Voltage Regulator 1 Outputs 1.5MHz Tape & Reel (TR) 400mA SC-74A, SOT-753

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RT8024GB information

RICHTEK RT8024GB technical specifications, attributes, parameters and parts with similar specifications to RICHTEK RT8024GB.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-74A, SOT-753

Number of Pins
5

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2011

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Function
Step-Down

Number of Outputs
1

Output Type
Adjustable

Voltage - Input (Min)
2.5V

Output Configuration
Positive

Current - Output
400mA

Max Output Voltage
5.5V

Voltage - Output (Min/Fixed)
0.6V

Topology
Buck

Frequency - Switching
1.5MHz

Synchronous Rectifier
Yes

Min Output Voltage
600mV

REACH SVHC
No SVHC

Lead Free
Lead Free

Download datasheets and manufacturer documentation for RICHTEK RT8024GB.

Datasheets:

richtekusainc-rt8024gb-datasheets-8007.pdf

Environmental Information:

richtekusainc-rt8471gj5-environmentalinformation-2260.pdf

RT8024GB Overview

A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In order to save space, this voltage regulator is packaged in the SC-74A, SOT-753 package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~85°C TA is essential when operating. A DC-DC switching regulator such as this one switches at 1.5MHz. Voltage regulators like this one can operate at least with 2.5V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.6V. This voltage regulator 12v features maximum design flexibility thanks to its 400mA output current. During switching regulator operation, 5 pins are used. Ideally this switch regulator should have an output voltage of about 600mV at the very least. DC DC switching regulator offers a maximum output voltage of 5.5V as its maximum output voltage.
