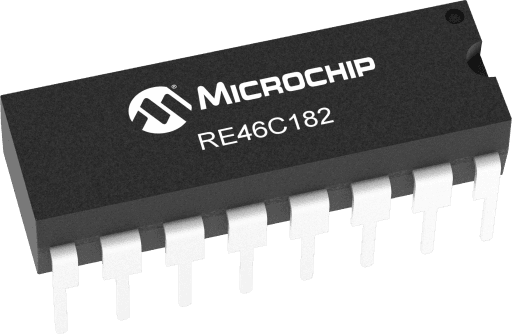

Microchip RE46C182E16
Manufacturer No:
RE46C182E16
Manufacturer:
Package:
Description:
RE46C182 is a CMOS Programmable Ion Smoke Detector ASIC
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
RE46C182E16 Information
Microchip RE46C182E16 technical specifications, attributes, parameters and parts with similar specifications to Microchip RE46C182E16.
- Type
- Parameter
- Type
- Ionization
- Typical Standby Iq (uA)
- 3.8
- UL-217 Ed 9 & UL-268 Ed 7 Compatible
- False
- Operating Voltage Min
- 6
- Operating Voltage Max
- 12
- Operating Temp Min
- -10
- Operating Temp Max
- 60
- CO Monitor
- False
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip RE46C182E16.
Data Sheets:
Brochures:
Application Notes:
The RE46C182 is a next generation low power programmable CMOS ionization type smoke detector IC. With minimal external components this circuit will provide all the required features for an ionization type smoke detector. An on-chip oscillator strobes power to the smoke detection circuitry for 5ms every 10 seconds to keep standby current to a minimum. A check for a low battery condition is performed every 80 seconds and ionization chamber test is performed once every 320 seconds when in standby. The temporal horn pattern supports the NFPA 72 emergency evacuation signal. An interconnect pin allows multiple detectors to be connected such that when one unit alarms all units will sound. A charge dump feature will quickly discharge the interconnect line when exiting a local alarm. The interconnect input is also digitally filtered. An internal 9 minute timer can be used for a reduced sensitivity mode. A local alarm memory feature allows the user to determine if the unit has previously entered a local alarm condition. A Chamber Monitor function checks for ionization chamber degradation.
- 6 -12V Operation
- Low Quiescent Current Consumption
- +/- 0.75pA Detect Input Current
- Guard Outputs for Ion Detector Input
- Programmable Standby Sensitivity
- Programmable Hush Sensitivity
- Programmable Hysteresis
- Programmable Chamber Voltage for Push-to-Test
- Programmable Low Battery Set Point
- Local Alarm Memory
- 9 Minute Hush Timer
- Temporal Horn Pattern
- Interconnect up to 40 Detectors
- IO Filter and Charge Dump
- 10-Year End-of-Life Indication
- Chamber Monitor Warning
