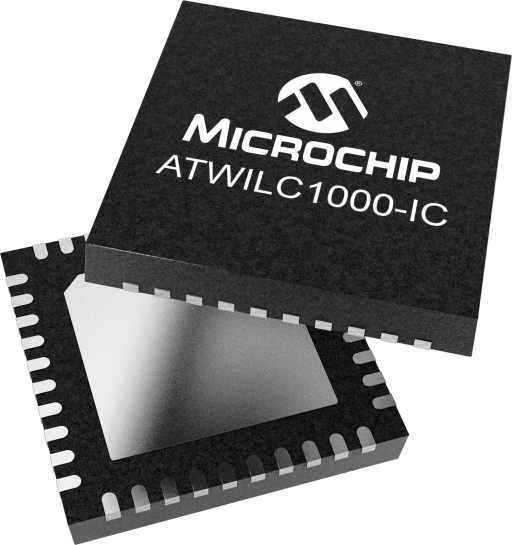

Microchip ATWILC1000B-MU-T
Manufacturer No:
ATWILC1000B-MU-T
Manufacturer:
Microchip
Package:
40-VFQFN Exposed Pad
Description:
ATWILC1000-IC is a Wi-Fi link controller IC with IEEE 802.11 b/g/n wireless connectivity.
Quantity:
In Stock :3264
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 2 - Wed, Jun 3, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
ATWILC1000B-MU-T Information
Microchip ATWILC1000B-MU-T technical specifications, attributes, parameters and parts with similar specifications to Microchip ATWILC1000B-MU-T.
- Type
- Parameter
- Concurrent Mode (STA / AP)
- Yes
- Enterprise Security
- Yes
- External PA Control
- No
- Frequency Range
- 2.4
- Operating Temp (°C) Min
- -40
- Operating Temp (°C) Max
- 85
- Operating Voltage (V) Min
- 2.7
- Operating Voltage (V) Max
- 3.6
- Packages
- VQFN
- Pin Count
- 40
- Type
- Parameter
- Power Down Mode Current Consumption (uA)
- 1.25
- RX Current Consumption (mA)
- 85
- TX Current Consumption (mA)
- 186
- RX Sensitivity (dBm)
- -94
- Wi-Fi Spec
- 802.11 b/g/n
- SRAM (KB)
- 224
- Sleep Mode Current Consumption (μA)
- 390
- SoftAP Client Count
- 8
- Supported Host OS
- Linux,FreeRTOS
- TX Output Power (dBm)
- 18.9
Download datasheets and manufacturer documentation for Microchip ATWILC1000B-MU-T.
Application Notes:
User Guide:
Data Sheets:
Release Notes:
Certifications:
Microchip's SmartConnect ATWILC1000 is an IEEE 802.11 b/g/n IoT link controller IC. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, FPGAs and other processors with minimal resource requirements and a simple SPI/SDIO-to-Wi-Fi interface.
The ATWILC1000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP. The ATWILC1000 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The only external clock source needed is a high-speed crystal or oscillator.
The ATWILC1000 can be used in Linux, RTOS or Baremetal Environments.
The ATWILC1000 driver is part of the Mainline Linux Kernel beginning in version 5.9 found at Linux.org in the Kernel mainline under driver/net/wireless/microchip.
The WILC1000 Linux driver development is now an integrated development under the Linux4sam.org project.
The current stable release can be found at github.com/linux4sam/linux-at91/tree/master/drivers/staging/wilc1000.
The current development branch can be found at https://github.com/linux4sam/linux-at91/tree/linux-5.10-at91/drivers/net/wireless/microchip
The WILC demo, serial bridge and firmware are hosted at github.com/linux4wilc
Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
Available in a fully-certified modules with u.FL connector or PCB antenna.
