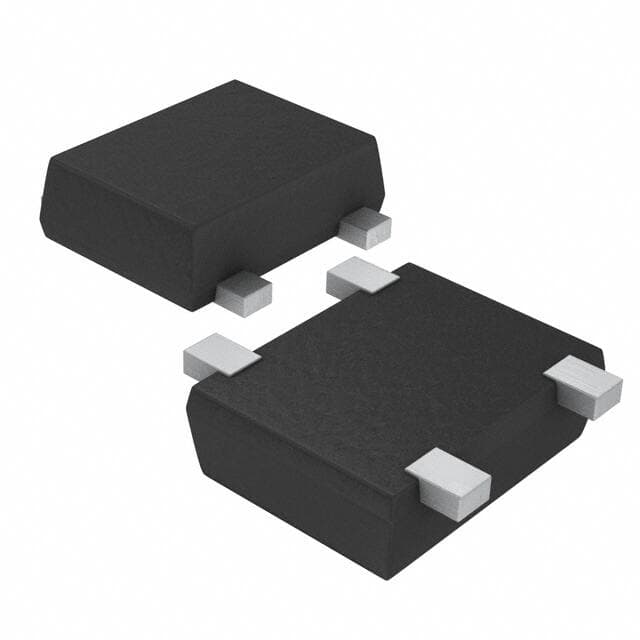

ROHM RB851YT2R
Manufacturer No:
RB851YT2R
Manufacturer:
Package:
SC-75-4, SOT-543
Description:
Schottky Rectifier Diode 2 Independent Small Signal =< 200mA (Io), Any Speed 125°C Max 30mA 3V-DC 2-Element SC-75-4, SOT-543 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RB851YT2R information
ROHM RB851YT2R technical specifications, attributes, parameters and parts with similar specifications to ROHM RB851YT2R.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SC-75-4, SOT-543
- Number of Pins
- 4
- Diode Element Material
- SILICON
- Packaging
- Tape & Reel (TR)
- Published
- 2007
- Tolerance
- 10%
- Part Status
- Not For New Designs
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 4
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Voltage - Rated
- 50V
- Additional Feature
- HIGH RELIABILITY
- Capacitance
- 330pF
- Subcategory
- Other Diodes
- Terminal Position
- DUAL
- Terminal Form
- FLAT
- Base Part Number
- RB851Y
- Case Code (Metric)
- 1005
- Number of Elements
- 2
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 700nA @ 1V
- Voltage - Forward (Vf) (Max) @ If
- 460mV @ 1mA
- Forward Current
- 30mA
- Operating Temperature - Junction
- 125°C Max
- Output Current-Max
- 0.03A
- Current - Average Rectified (Io)
- 30mA DC
- Forward Voltage
- 460mV
- Max Reverse Voltage (DC)
- 3V
- Average Rectified Current
- 30mA
- Peak Reverse Current
- 700nA
- Max Repetitive Reverse Voltage (Vrrm)
- 3V
- Diode Configuration
- 2 Independent
- Reverse Test Voltage
- 1V
- Length
- 990.6?m
- Width
- 304.8?m
- Thickness
- 558.8?m
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Ratings
- AEC-Q200
Download datasheets and manufacturer documentation for ROHM RB851YT2R.
Datasheets:
RB851YT2R Overview
As long as the forward voltage is set to 460mV, the device will operate.The maximum output voltage can be set to 0.03A.As long as the forward voltage is set to 30mA, the device will operate.Array has a capacArrayance of approximately 330pF farads.There is a reverse voltage peak of 700nA on devices like this one.
RB851YT2R Features
460mV forward voltage
a maximum output voltage of 0.03A
330pF farads
a peak voltage of 700nA
a reverse voltage peak of 700nA
RB851YT2R Applications
There are a lot of ROHM Semiconductor
RB851YT2R applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
