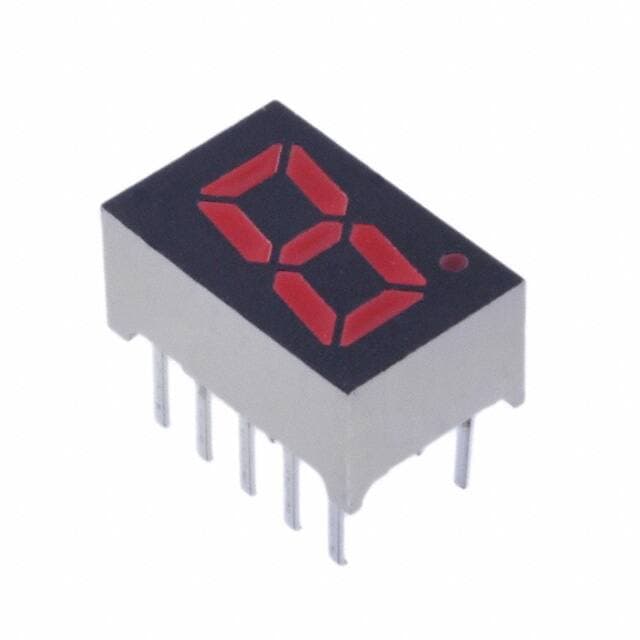

ROHM Semiconductor LA-301VL
Manufacturer No:
LA-301VL
Manufacturer:
Package:
10-DIP (0.209, 5.30mm)
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LA-301VL information
ROHM Semiconductor LA-301VL technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor LA-301VL.
- Type
- Parameter
- Mount
- Through Hole
- Package / Case
- 10-DIP (0.209, 5.30mm)
- Number of Pins
- 10
- Packaging
- Bulk
- Published
- 2008
- Size / Dimension
- 0.433 Hx0.276W x 0.197 D 11.00mmx7.00mmx5.00mm
- JESD-609 Code
- e1
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Max Operating Temperature
- 75°C
- Min Operating Temperature
- -25°C
- Color
- Red
- Subcategory
- LED Displays
- Number of Functions
- 1
- Operating Supply Voltage
- 2V
- Power Dissipation-Max
- 40mW
- Element Configuration
- Common Cathode
- Forward Current
- 15mA
- Current - Test
- 10mA
- Luminous Intensity
- 10 mcd
- Wavelength - Peak
- 650nm
- Display Type
- 7-Segment
- Number of Characters
- 1
- Number of Segments
- 7
- Digit/Alpha Size
- 0.31 8.00mm
- Common Pin
- Common Cathode
- Character Width
- 4mm
- Height
- 10.9982mm
- Viewing Area (height)
- 8mm
- Character Height
- 8mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ROHM Semiconductor LA-301VL.
Datasheets:
PCN Obsolescence/ EOL:
No product details available
