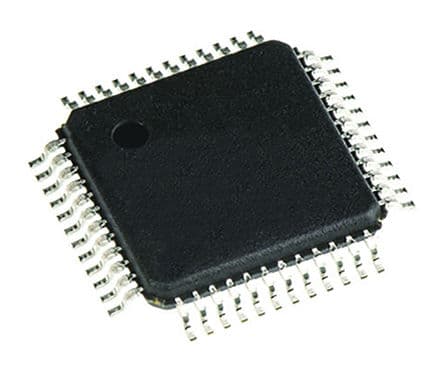

Renesas R5F100GCGFB#V0
Manufacturer No:
R5F100GCGFB#V0
Manufacturer:
Package:
48-LQFP
Description:
32KB 32K x 8 FLASH RL78 16-Bit Microcontroller RL78/G13 Series R5F100 48 Pin 3V 48-LQFP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
R5F100GCGFB#V0 information
Renesas R5F100GCGFB#V0 technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F100GCGFB#V0.
- Type
- Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 48-LQFP
- Surface Mount
- YES
- Number of Pins
- 48
- Operating Temperature
- -40°C~105°C TA
- Packaging
- Tray
- Series
- RL78/G13
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 48
- Additional Feature
- IT ALSO OPERATES AT 16MHZ @2.4V MIN SUPPLY
- HTS Code
- 8542.31.00.01
- Technology
- CMOS
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Supply Voltage
- 3V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- R5F100
- Pin Count
- 48
- Supply Voltage-Max (Vsup)
- 5.5V
- Supply Voltage-Min (Vsup)
- 2.7V
- Number of I/O
- 34
- Speed
- 32MHz
- RAM Size
- 2K x 8
- Voltage - Supply (Vcc/Vdd)
- 2.4V~5.5V
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER
- Core Processor
- RL78
- Peripherals
- DMA, LVD, POR, PWM, WDT
- Clock Frequency
- 20MHz
- Program Memory Type
- FLASH
- Core Size
- 16-Bit
- Program Memory Size
- 32KB 32K x 8
- Connectivity
- CSI, I2C, LINbus, UART/USART
- Bit Size
- 16
- Data Converter
- A/D 10x8/10b
- Has ADC
- YES
- DMA Channels
- YES
- PWM Channels
- YES
- DAC Channels
- NO
- ROM (words)
- 32768
- EEPROM Size
- 4K x 8
- On Chip Program ROM Width
- 8
- Length
- 7mm
- Height Seated (Max)
- 1.6mm
Download datasheets and manufacturer documentation for Renesas R5F100GCGFB#V0.
ConflictMineralStatement:
R5F100GCGFB#V0 Overview
Packaged in a 48-LQFP format. A total of 34 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 16-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A RL78/G13 series electrical component is used in this application. This program has a program memory of 32KB 32K x 8 bytes, which is the size of the program. With a RL78 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER uPs/uCs/peripheral parts. There are 48 terminations on the IC chip, which means there are 48 terminations on the integrated circuit chip. In addition, MCU chip comes with a 16-bit size. Microcontroller chip has outputs of 3V volts. The system has YES channels for DMA communication. Alternatives can be found by searching through the base part number R5F100 to find them. This MCU Chip uses YES PWM channels to operate. Chips have 48 pins. In total, it has 48 pins. It runs on a 20MHz clock. As an example, one of the additional features that you can use is IT ALSO OPERATES AT 16MHZ @2.4V MIN SUPPLY.
