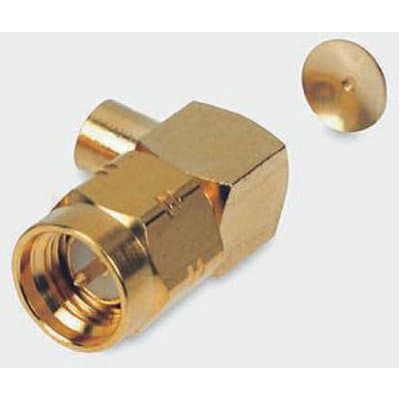

Radiall R124154003W

Manufacturer No:

R124154003W

Manufacturer:

Radiall

Package:

SMA

Description:

Coaxial, SMA 50 ?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R124154003W information

Radiall R124154003W technical specifications, attributes, parameters and parts with similar specifications to Radiall R124154003W.

Type
Parameter

Package / Case
SMA

Contact Material
Brass

Contact Plating
Gold

Mount
Cable

Insulation Material
Polytetrafluoroethylene

Body Material
Brass

Termination
Solder

Connector Type
Coaxial, SMA

Max Operating Temperature
105 °C

Min Operating Temperature
-65 °C

Gender
Male

Orientation
Right Angle

Depth
8 mm

Frequency
12.4 GHz

Polarity
Standard

Insulation Resistance
5 G?

Impedance
50 ?

Body Plating
Gold

Max Frequency
12.4 GHz

Voltage Rating
500 V

Length
16.4 mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Radiall R124154003W.

Datasheets:

radiall-r124154003w-datasheets-5632.pdf

radiall-r124154003w-datasheets-5633.pdf

R124154003W Overview

It comes in Coaxial, SMA packaging.You should use it when it's below 105 °C.A minimum temperature of -65 °C is required for the operation of this device.The packaging with the SMA contains a device.Cable is used to mount the part.In the case of 12.4 GHz frequency operation, it can perform efficiently.It is possible for the device to reach a maximum frequency of 12.4 GHz.

R124154003W Features

R124154003W Applications

There are a lot of Radiall
R124154003W Coaxial Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
