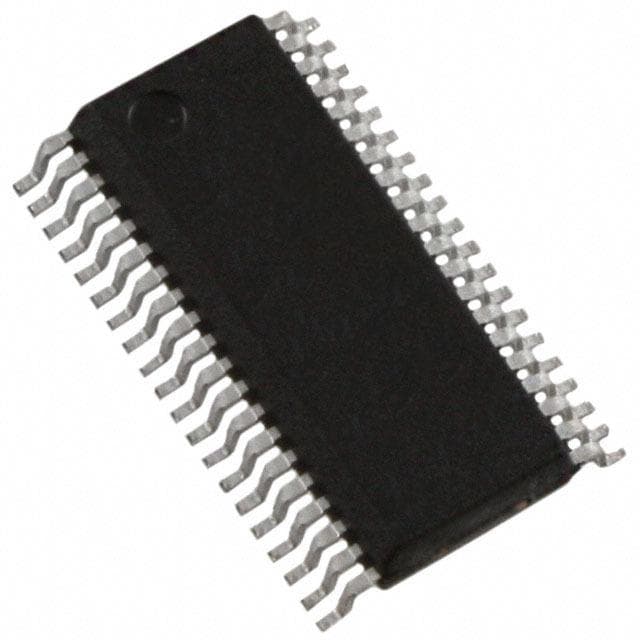

Renesas QS32XVH2245Q2G

Manufacturer No:

QS32XVH2245Q2G

Manufacturer:

Renesas

Package:

Description:

40 Terminations 40 Pin Signal switch 2 Functions Min 2.3V V Max 3.6V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QS32XVH2245Q2G information

Renesas QS32XVH2245Q2G technical specifications, attributes, parameters and parts with similar specifications to Renesas QS32XVH2245Q2G.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Number of Pins
40

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
40

ECCN Code
EAR99

Resistance
40Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
40

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Min Supply Voltage
2.3V

Number of Ports
2

Nominal Supply Current
4mA

Number of Bits
16

Propagation Delay
1.35 ns

Quiescent Current
6mA

Turn On Delay Time
9 ns

Family
CBT/FST/QS/5C/B

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

Logic IC Type
BUS DRIVER

Low Level Output Current
120mA

Independent Circuits
2

Length
9.9mm

Width
3.81mm

Thickness
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas QS32XVH2245Q2G.

Datasheets:

integrateddevicetechnology-qs32xvh2245q2g-datasheets-6514.pdf

QS32XVH2245Q2G Overview

The basic configuration includes 40 terminations.The multiplexer's system is powered by 3.3V voltage.This turn signal switch has 40 component pins.As the end of conductors, it uses GULL WING.Single is used as its supply type.With 40 pins, it is configured.Surface Mount is the way it is mounted.The logic switch belongs to the family of CBT/FST/QS/5C/B.Signal multiplexer provides 16 bits.Bus Driver/Transceivers is the classification for this the digital switch ic.In the absence of external influences, it consumes 6mA current of multiplexer ic.With a resistance of 0, it operates.With a resistance of 40Ohm, it operates.A maximum temperature of 85°C is acceptable for this signal switch.Temperatures of the multiplexer should be kept at -40°C.According to the applicable device specification, the signal switches operates at a maximum supply voltage of 3.6V.According to its specifications, the digital swith requires a minimum supply voltage of 2.3V.The logic IC of the digitalswitch is BUS DRIVER.

QS32XVH2245Q2G Features

Adopting a supply type of Single
BUS DRIVER as the logic IC

QS32XVH2245Q2G Applications

There are a lot of Integrated Device Technology (IDT)
QS32XVH2245Q2G Signal Switches / Multiplexers / Decoders applications.

Telephone network
Computer memory
Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
