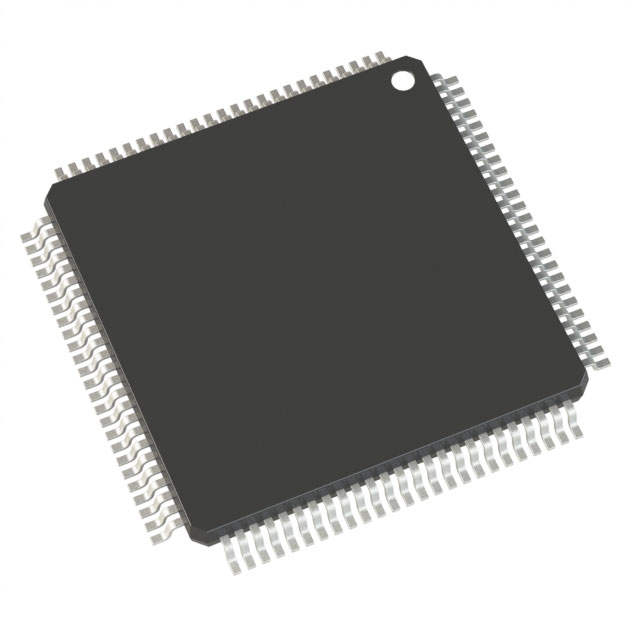

Microchip DSPIC33EP512GM710-I/PT

Manufacturer No:

DSPIC33EP512GM710-I/PT

Manufacturer:

Microchip

Package:

100-TQFP

Description:

70 MIPS, 512KB Flash, 48KB RAM, 100 pins, Motor Control, OpAmps, CAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33EP512GM710-I/PT information

Microchip DSPIC33EP512GM710-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33EP512GM710-I/PT.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
70

Program Memory Size (KB)
512

Multiple Flash Panels
False

Direct Memory Access (DMA) Channels
4

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
150

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
100

Low Power
No

Number of Comparators
5

ADC Modules
2

ADC Channels
49

ADC Resolution Max
12

ADC Sampling Rate (ksps)
1100

Number of DACs
2

DAC outputs
0

Max DAC Resolution (bits)
4

Hardware RTCC
No

Motor Control PWM Channels
12

SMPS PWM Channels
0

Number of PWM Time Bases
2

Output Compare Channels
8

Number of CAN Modules
2

Type of CAN module Max
CAN

Crypto Engine
No

Quadrature Encoder Interface (QEI)
2

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Supported in MPLAB Code Configurator
Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33EP512GM710-I/PT.

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.

3.0V to 3.6V, -40°C to +85°C, up to 70 MIPS
3.0V to 3.6V, -40°C to +150°C, up to 60 MIPS

Code-Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL plus Hardware Divide
32-Bit Multiply Support

Up to 12 PWM Outputs (six generators)
Primary Master Time Base Inputs allow Time Base Synchronization from Internal/External Sources
Dead Time for Rising and Falling Edges
7.14 ns PWM Resolution
PWM Support for DC/DC, AC/DC, Inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions
Supports PWM Lock, PWM Output Chopping and Dynamic Phase Shifting

Two Independent ADC modules
Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
11, 13, 18, 30 or 49 analog inputs
Flexible and Independent ADC Trigger Sources
Up to Four Op Amp/Comparators with Direct Connection to the ADC module
Additional dedicated comparator
Programmable references with 32 voltage points
Programmable blanking and filtering
Charge Time Measurement Unit (CTMU)
Supports mTouch™ capacitive touch sensing
Provides high-resolution time measurement (1 ns)
On-chip temperature measurement

21 General Purpose Timers
Nine 16-bit and up to four 32-bit timers/counters
Eight output capture modules configurable as timers/counters
PTG module with two configurable timers/counters
Two 32-bit Quadrature Encoder Interface (QEI) modules configurable as a timer/counter
Eight Input Capture modules
Peripheral Pin Select (PPS) to allow Function Remap
Peripheral Trigger Generator (PTG) for Scheduling Complex Sequences

Four Enhanced Addressable UART modules (17.5 Mbps)
With support for LIN/J2602 protocols and IrDA®
Three 3-Wire/4-Wire SPI modules (15 Mbps)
25 Mbps Data Rate for Dedicated SPI module (with no PPS)
Two I2C™ modules (up to 1 Mbps) with SMBus Support
Two CAN modules (1 Mbps) CAN 2.0B Support
Programmable Cyclic Redundancy Check (CRC)
Codec Interface module (DCI) with I2S Support

4-Channel DMA with User-Selectable Priority Arbitration
Peripherals Supported by the DMA Controller include UART, SPI, ADC and input capture, Output compare and timers
