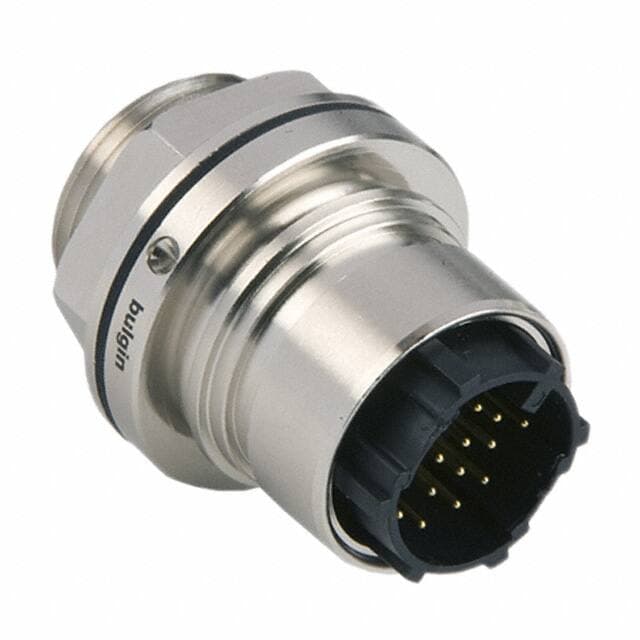

Bulgin PXM6012/16P/CR
Bulgin PXM6012/16P/CR

Bulgin PXM6012/16P/CR

Manufacturer No:

PXM6012/16P/CR

Manufacturer:

Bulgin

Package:

Metal

Description:

Receptacle Housing Brass Panel Mount Nickel 16 (Power) Positions Bulk Push-Twist Unshielded Contacts Not Included Buccaneer® 6000

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PXM6012/16P/CR information

Bulgin PXM6012/16P/CR technical specifications, attributes, parameters and parts with similar specifications to Bulgin PXM6012/16P/CR.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Contact Material
  • NOT SPECIFIED
  • Mount
  • Bulkhead, Panel, Rear Side Nut
  • Mounting Type
  • Panel Mount
  • Package / Case
  • Metal
  • Mounting Feature
  • Bulkhead - Rear Side Nut
  • Number of Pins
  • 16
  • Contact Shape
  • Circular
  • Shell Material
  • Brass
  • Operating Temperature
  • -40°C~120°C
  • Packaging
  • Bulk
  • Series
  • Buccaneer® 6000
  • Published
  • 2012
  • Feature
  • Shielded
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Crimp
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle Housing
  • Type
  • For Male Pins
  • Number of Positions
  • 16 (Power)
  • Gender
  • Receptacle
  • Voltage - Rated
  • 60V
  • HTS Code
  • 8536.69.40.30
  • Voltage - Rated DC
  • 60V
  • Contact Finish - Mating
  • NOT SPECIFIED
  • Contact Type
  • Crimp and Solder Cup
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Ingress Protection
  • IP66/68/69K - Dust Tight, Water Resistant, Waterproof
  • Current Rating
  • 3A
  • Shell Finish
  • Nickel
  • Contact Gender
  • Male
  • Housing Color
  • Silver
  • Note
  • Contacts Not Included
  • Max Current Rating
  • 3A
  • Number of Ports
  • 1
  • Includes
  • 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Hole Diameter
  • 22.5 mm
  • Length
  • 41.4mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • Dust Tight, IP66, Water Resistant, Waterproof

Download datasheets and manufacturer documentation for Bulgin PXM6012/16P/CR.

Datasheets:

Environmental Information:

PXM6012/16P/CR Overview


It comes in Receptacle Housing packaging.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the Buccaneer® 6000 Series of products.This part shares lots of benefits with other For Male Pins products.When operating, it is possible to ensure that Shielded is maintained.It is necessary to use a Bulkhead, Panel, Rear Side Nut socket in order to mount this part.The device is equipped with 16 pins.In the packaging with the Metal, there is a device enclosed in the package.It features 1 ports for managing a variety of tasks.

PXM6012/16P/CR Features


Buccaneer® 6000 series


PXM6012/16P/CR Applications


There are a lot of Bulgin
PXM6012/16P/CR Circular Connectors applications.


  • Audio/Video devices
  • Cell Phones
  • Digital Multimeters, PLC's (Programming Logic Controllers)
  • RADAR processing, digital oscilloscopes
  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
