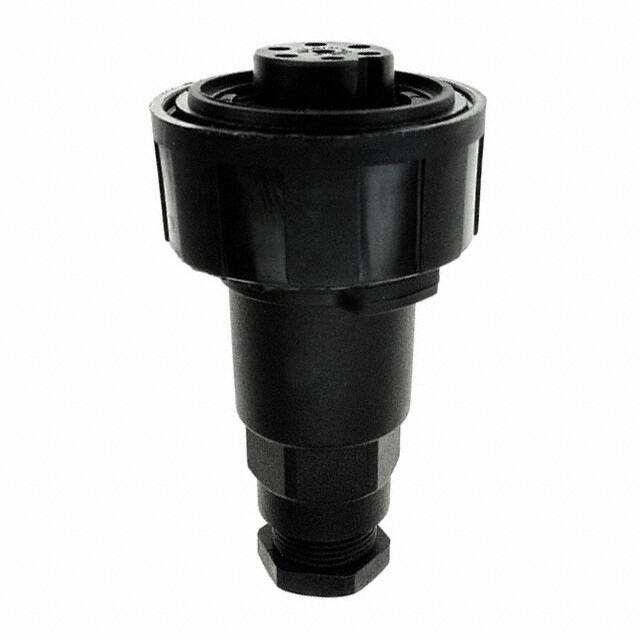

Bulgin PX0745/S
Bulgin PX0745/S

Bulgin PX0745/S

Manufacturer No:

PX0745/S

Manufacturer:

Bulgin

Package:

Description:

Plug, Female Sockets Polyamide (PA), Nylon, Glass Filled Free Hanging (In-Line) 7 (Power) Positions Screw Nickel Bulk Keyed Threaded

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PX0745/S information

Bulgin PX0745/S technical specifications, attributes, parameters and parts with similar specifications to Bulgin PX0745/S.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Contact Material
  • Brass
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Number of Pins
  • 7
  • Shell Material
  • Polyamide (PA), Nylon, Glass Filled
  • Housing Material
  • Polyamide
  • Insert Material
  • Polyamide (PA), Nylon
  • Body Material
  • Glass, Nylon, Polyamide
  • Backshell Material, Plating
  • Polyamide (PA), Nylon, Glass Filled
  • Operating Temperature
  • -20°C~70°C
  • Packaging
  • Bulk
  • Series
  • Buccaneer®, Standard
  • Published
  • 2001
  • Feature
  • Backshell, Coupling Nut
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Screw
  • Connector Type
  • Plug, Female Sockets
  • Number of Positions
  • 7 (Power)
  • Color
  • Black
  • Gender
  • Receptacle
  • Voltage - Rated
  • 277VAC/DC
  • Additional Feature
  • STANDARDS: UL 94H-B; CSA; VDE
  • Contact Finish - Mating
  • Nickel
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 7
  • Orientation
  • Keyed
  • Shielding
  • Unshielded
  • Ingress Protection
  • IP68/69K - Dust Tight, Water Resistant, Waterproof
  • Current Rating
  • 3A
  • Voltage - Rated AC
  • 250V
  • Approval Agency
  • CSA, UL, VDE
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • Female
  • Insulation Resistance
  • 100MOhm
  • Max Current Rating
  • 3A
  • Number of Ports
  • 1
  • Max Voltage Rating (DC)
  • 250.25kV
  • Cable Opening
  • 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
  • Mains Connector Rating
  • 3A, 250VAC/DC
  • Length
  • 69mm
  • Width
  • 38.1mm
  • Material Flammability Rating
  • UL94 HB

Download datasheets and manufacturer documentation for Bulgin PX0745/S.

Datasheets:

Environmental Information:

PX0745/S Overview


Packaging is Plug, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buccaneer®, Standard Series, it can be found in this category.It has 7 pins.There are also other features such as STANDARDS: UL 94H-B; CSA; VDE, to name only a few.With its Backshell, Coupling Nut feature, it is more powerful in many ways.In this case, Cable, Free Hanging mounts the part.The device is operating at -20°C~70°C Operating Temperature.

PX0745/S Features


Buccaneer®, Standard series


PX0745/S Applications


There are a lot of Bulgin
PX0745/S Circular Connectors applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
