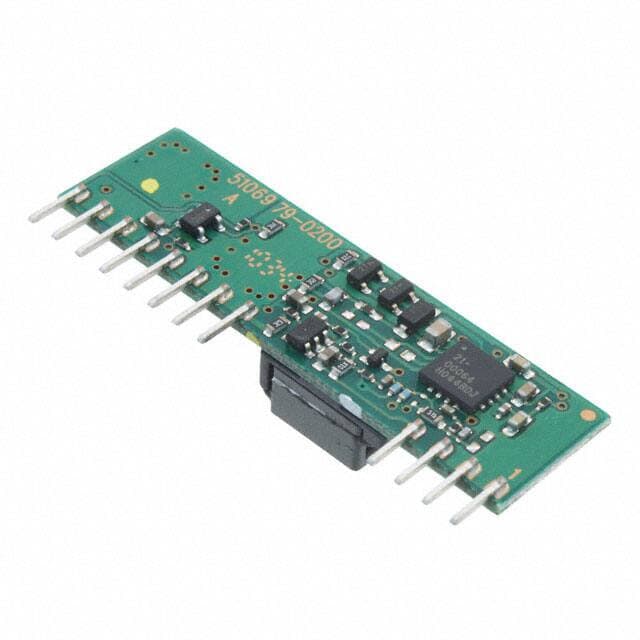

Artesyn Embedded Power PTV05020WAD
Artesyn Embedded Power PTV05020WAD

Artesyn Embedded Power PTV05020WAD

Manufacturer No:

PTV05020WAD

Manufacturer:

Artesyn Embedded Power

Package:

12-SIP Module

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PTV05020WAD information

Artesyn Embedded Power PTV05020WAD technical specifications, attributes, parameters and parts with similar specifications to Artesyn Embedded Power PTV05020WAD.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 12-SIP Module
  • Surface Mount
  • NO
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Series
  • PTV05020 (65W)
  • Published
  • 2005
  • Size / Dimension
  • 1.75Lx0.37W x 0.50 H 44.5mmx9.4mmx12.7mm
  • Feature
  • Remote On/Off, OCP, OTP, UVLO
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 12
  • ECCN Code
  • EAR99
  • Type
  • Non-Isolated PoL Module
  • Applications
  • ITE (Commercial)
  • Technology
  • HYBRID
  • Terminal Position
  • SINGLE
  • Terminal Form
  • PIN/PEG
  • Number of Functions
  • 1
  • Reach Compliance Code
  • unknown
  • Pin Count
  • 12
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Voltage - Input (Max)
  • 5.5V
  • Voltage - Output 1
  • 0.8V~3.6V
  • Voltage - Input (Min)
  • 4.5V
  • Input Voltage-Nom
  • 5V
  • Trim/Adjustable Output
  • YES
  • Current - Output (Max)
  • 18A
  • Output Power
  • 64.8W
  • RoHS Status
  • RoHS Compliant
