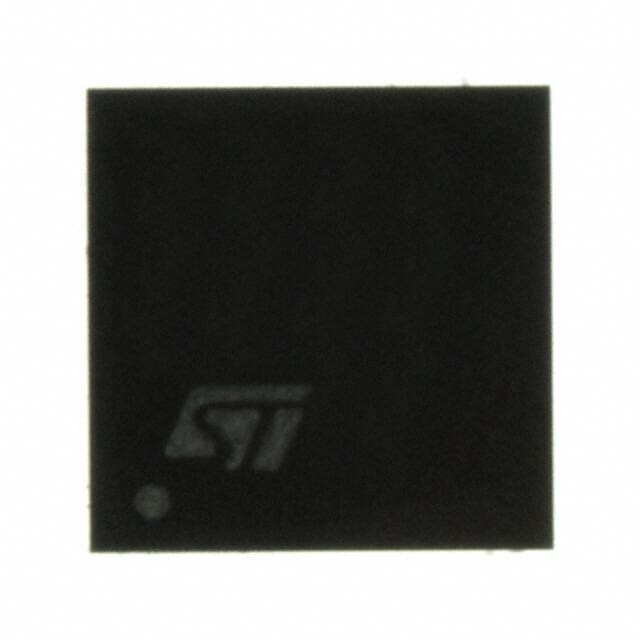

ST PM6681ATR
ST PM6681ATR

ST PM6681ATR

Manufacturer No:

PM6681ATR

Manufacturer:

ST

Package:

32-VFQFN Exposed Pad

Description:

0.5mm PMIC PM6681 32 Pin 32-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PM6681ATR information

ST PM6681ATR technical specifications, attributes, parameters and parts with similar specifications to ST PM6681ATR.

  • Type
  • Parameter
  • Factory Lead Time
  • 38 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-VFQFN Exposed Pad
  • Number of Pins
  • 32
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 32
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Subcategory
  • Switching Regulator or Controllers
  • Voltage - Supply
  • 4.5V~36V
  • Terminal Position
  • QUAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • PM6681
  • Pin Count
  • 32
  • Number of Outputs
  • 4
  • Output Voltage
  • 3.3V
  • Max Output Current
  • 100mA
  • Operating Supply Voltage
  • 5.5V
  • Input Voltage-Nom
  • 24V
  • Analog IC - Other Type
  • DUAL SWITCHING CONTROLLER
  • Output Current
  • 10A
  • Voltage - Output 2
  • 3.3V
  • Input Voltage (Min)
  • 6V
  • Topology
  • Step-Down (Buck) (2), Linear (LDO) (2)
  • Control Mode
  • VOLTAGE-MODE
  • Frequency - Switching
  • Down to 33kHz
  • Input Voltage (Max)
  • 36V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Current - Output 1
  • 100mA
  • Voltage - Output 3
  • 5V
  • Switcher Configuration
  • PUSH-PULL
  • Current - Output 2
  • 100mA
  • w/Sequencer
  • No
  • Voltage/Current - Output 1
  • 0.9V~5V 100mA
  • Current - Output 3
  • 100mA
  • Voltage/Current - Output 2
  • 0.9V~3.3V 100mA
  • Voltage/Current - Output 3
  • 5V 100mA
  • Length
  • 5mm
  • Height Seated (Max)
  • 1mm
  • Width
  • 5mm

Download datasheets and manufacturer documentation for ST PM6681ATR.

Datasheets:

PM6681ATR Description


PM6681ATR is a dual step-down controller specifically designed to provide extremely high-efficiency conversion, with a lossless current sensing technique. The constant on-time architecture assures fast load transient response and the embedded voltage feed-forward provides nearly constant switching frequency operation. An embedded integrator control loop compensates for the DC voltage error due to the output ripple. The pulse-skipping technique increases efficiency at a very light load. Moreover, a minimum switching frequency of 33 kHz is selectable to avoid audio noise issues.



PM6681ATR Features


6 V to 36 V input voltage range

Adjustable output voltages

0.9- 3.3 V LDO adjustable delivers 100 mA peak current

5 V LDO delivers 100 mA peak current

1.237 V +1 % reference voltage available

No RsENSE current sensing using low-side MOSFETs' Ros(on)

Negative current limit

Soft-start internally fixed at 2 ms

Soft output discharge

Latched UVP

Not-latched OVP

Selectable pulse skipping at light loads

Selectable minimum frequency (33 kHz) in pulse skip mode

5 mW maximum quiescent power

Independent Power Good signals

Output voltage ripple compensation



PM6681ATR Applications


Embedded computer system

FPGA system power

Industrial applications on 24 V

High-performance and high-density DC-DC modules

Notebook computer
