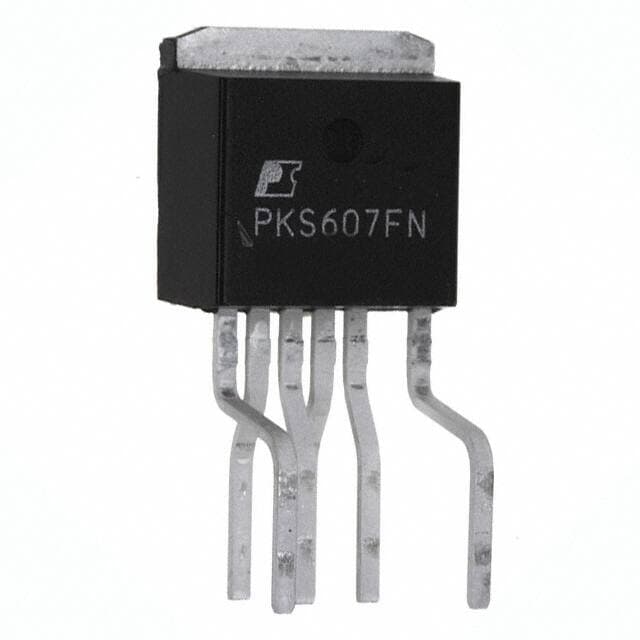

Power Integrations PKS607FN

Manufacturer No:

PKS607FN

Manufacturer:

Power Integrations

Package:

TO-262-7 (Formed Leads), 6 Leads

Description:

7 Terminations 6 Pin AC to DC power converter PeakSwitch® Series 277kHz Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PKS607FN information

Power Integrations PKS607FN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations PKS607FN.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
TO-262-7 (Formed Leads), 6 Leads

Surface Mount
NO

Number of Pins
6

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
PeakSwitch®

Published
2007

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

ECCN Code
EAR99

HTS Code
8542.39.00.01

Max Power Dissipation
126W

Terminal Position
ZIG-ZAG

Number of Functions
1

Pin Count
3

JESD-30 Code
R-PZFM-T7

Analog IC - Other Type
SWITCHING CONTROLLER

Nominal Supply Current
1.43mA

Control Features
EN

Topology
Flyback

Output Current-Max
3.21A

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature

Max Duty Cycle
68 %

Max Supply Voltage (AC)
265V

Duty Cycle
65%

Output Isolation
Isolated

Voltage - Breakdown
700V

Min Supply Voltage (AC)
85V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Power Integrations PKS607FN.

Datasheets:

powerintegrations-pks604pn-datasheets-3886.pdf

PKS607FN Overview

TO-262-7 (Formed Leads), 6 Leads is the package in which the ac to dc converter is embedded.There is a AC/DC power converter of Tube available.Through Hole is mounted in the way of this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.When the switching frequency reaches 277kHz , the circuit is closed.A total of 7 terminations have been recorded.On the ac/dc converter, there are 6 pins.A total of 3 pins are present on the ac-dc converter.The product is acdc converter of the PeakSwitch® manufacturer family.Ac to dc inverters can be supplied with a maximum current of 3.21A .This converter requires a minimum supply voltage of 85V volts.Across the converter, the maximum supply voltage is 265V .

PKS607FN Features

Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 277kHz
With 6 pins

PKS607FN Applications

There are a lot of Power Integrations
PKS607FN AC DC Converters applications.

AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
