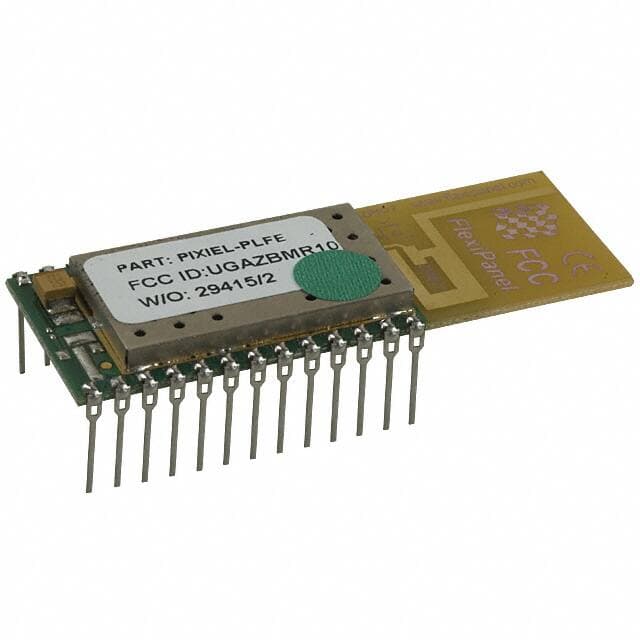

Flexipanel PIXLITE-DIL-PLFE

Manufacturer No:

PIXLITE-DIL-PLFE

Manufacturer:

Flexipanel

Package:

24-DIP Module

Description:

2.4GHz 802.15.4 -40°C~85°C 2.1V~3.6V SPI, UART Tube Integrated, Trace 250kbps 0dBm Zigbee® 24-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIXLITE-DIL-PLFE information

Flexipanel PIXLITE-DIL-PLFE technical specifications, attributes, parameters and parts with similar specifications to Flexipanel PIXLITE-DIL-PLFE.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-DIP Module

Number of Pins
24

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
Pixie?

Published
2007

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
Not Applicable

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
2.1V~3.6V

Frequency
2.4GHz

Number of Channels
16

Interface
SPI, UART

Data Rate
250kbps

Utilized IC / Part
MG2470B

Protocol
Zigbee®

Power - Output
0dBm

RF Family/Standard
802.15.4

Antenna Type
Integrated, Trace

Serial Interfaces
SPI, UART

Current - Receiving
25mA

Modulation
DSSS, O-QPSK

Height
3.6mm

Length
53.6mm

Width
19.8mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Flexipanel PIXLITE-DIL-PLFE.

Datasheets:

flexipanel-evalbt-datasheets-2444.pdf

flexipanel-pixlitedilplfe-datasheets-8509.pdf

PIXLITE-DIL-PLFE Overview

For RF Transceiver' mounting, it uses the Through Hole method.It uses the Tube package in order to optimize the performance of this RF Transceiver module.Transceivers should be operated at -40°C~85°C temperature while operating.To operate the high power RF Transceiver, 24 pins are required.As the name implies, this RF Transceiver Module belongs to the Pixie? family.There is 2.1V~3.6V voltage limit on the RF Transceiver.A RF Transceiver Module operates at a frequency of 2.4GHz.There are many applications for this Transceiver , since it is Through Hole mounted.

PIXLITE-DIL-PLFE Features

Through Hole
Tube package
24 pins
2.1V~3.6V volts

PIXLITE-DIL-PLFE Applications

There are a lot of Flexipanel
PIXLITE-DIL-PLFE RF Transceiver Modules applications.

Low Noise Amplifier (LNA)
Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
