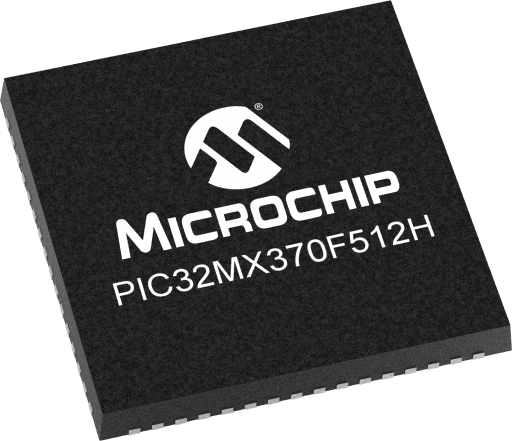

Microchip PIC32MX370F512H-I/PT
Microchip PIC32MX370F512H-I/PTMicrochip PIC32MX370F512H-I/PT

Microchip PIC32MX370F512H-I/PT

Manufacturer No:

PIC32MX370F512H-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

32 Bit MCU, 512KB Flash, 128KB RAM, 120 MHz, 64 Pin, 2 Comp, CTMU, RTCC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC32MX370F512H-I/PT information

Microchip PIC32MX370F512H-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MX370F512H-I/PT.

  • Type
  • Parameter
  • Part Family
  • PIC32MX3xx
  • CPU Type
  • 32-bit MIPS MCU
  • MaxSpeed (MHz)
  • 120
  • Program Memory Size (KB)
  • 512
  • SRAM (KB)
  • 128
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 105
  • Operation Voltage Min.(V)
  • 2.3
  • Operation Voltage Max.(V)
  • 3.6
  • SPI
  • 2
  • I2C
  • 2
  • UART
  • 4
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 8 MHz, 32 kHz
  • Pin Count
  • 64
  • Secure Boot
  • No

Download datasheets and manufacturer documentation for Microchip PIC32MX370F512H-I/PT.

Application Notes:

Tech Brief:

Legacy Collaterals:

Brochures:

Reference Manual:

Programming Specifications:

Data Sheets:

Errata:

PIC32MX3/4 MCUs offer the perfect combination of 32-bit performance, memory, and integrated peripherals at a low cost. These devices run up to 120 MHz/150 DMIPS. The PIC32MX3/4 family boasts a rich set of integrated peripherals including two SPI/I2S interfaces for audio codecs, an 8-bit PMP for graphics or external memory, and on-board 10-bit 1 Msps ADC.



  • 120 MHz/150 DMIPS, MIPS32® M4K® core
  • Two I2S/SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) for graphics interfaces
  • Temperature Range - 40°C to 105°C
  • Operating voltage range of 2.3V to 3.6V
  • 512KB Flash memory (plus an additional 12 KB of Boot Flash)
  • 128KB SRAM memory
  • MIPS16e® mode for up to 40% smaller code size
  • Pin-compatible with most Microchip 16-bit devices
  • Low-power management modes (Idle and Sleep)
  • Peripheral Pin Select (PPS) functionality
  • Up to 4 channels of hardware DMA with automatic data size detection
  • Four UARTs and two I2C™ modules
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
  • Five Capture inputs and Five Compare/PWM outputs
  • External graphics interface with up to 34 PMP pins
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
      • Audio data master clock:
    • Generation of fractional clock frequencies
    • Can be synchronized with USB clock
    • Can be tuned in run-time
      ADC Module:
    • 10-bit 1Msps rate with one Sample and Hold (S&H)
    • Up to 28 analog inputs
    • Can operate during sleep mode
      Two dual-input Comparator modules
    • Programmable references with 32 voltage points
      In-circuit and in-application programming and debug
    • 4-wire MIPS® Enhanced JTAG interface
    • Unlimited program and six complex data breakpoints
    • IEEE 1149.2-compatible (JTAG) boundary scan
