ST STG4260BJR

Manufacturer No:

STG4260BJR

Manufacturer:

Package:

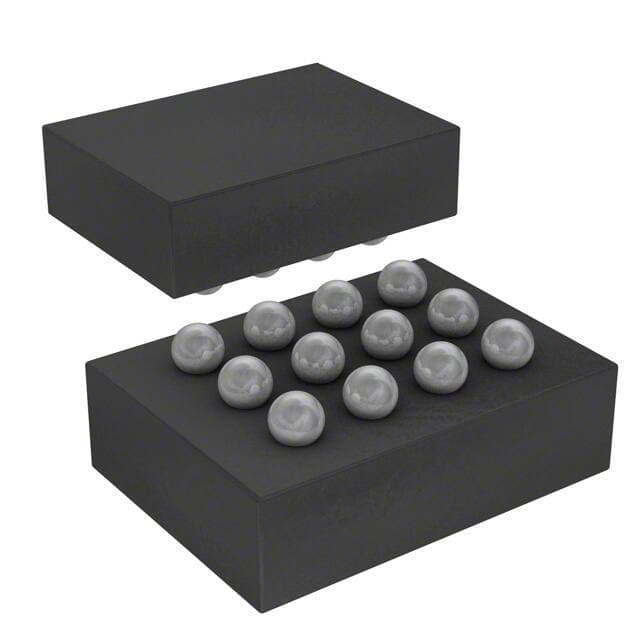

12-UFBGA, FCBGA

Description:

38ns, 38ns SPDT 500mOhm BOTTOM Analog Switches BREAK-BEFORE-MAKE STG4260 12 Pins 30nA 1.8V 12-UFBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STG4260BJR information

ST STG4260BJR technical specifications, attributes, parameters and parts with similar specifications to ST STG4260BJR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-UFBGA, FCBGA

Number of Pins
12

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Resistance
500mOhm

Subcategory
Multiplexer or Switches

Max Power Dissipation
500mW

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
2

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Base Part Number
STG4260

Output
SEPARATE OUTPUT

Pin Count
12

Power Supplies
1.8/4V

Number of Channels
1

Max Supply Voltage
4.8V

Min Supply Voltage
1.65V

Max Supply Current
50nA

Turn On Delay Time
38 ns

Supply Type
Single

Turn-Off Delay Time
38 ns

-3db Bandwidth
50MHz

On-State Resistance (Max)
500mOhm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
50 dB

Current - Leakage (IS(off)) (Max)
30nA

Channel Capacitance (CS(off), CD(off))
30pF

On-state Resistance Match-Nom
40Ohm

Switch Circuit
SPDT

Switch Time (Ton, Toff) (Max)
38ns, 38ns

Charge Injection
140pC

Channel-to-Channel Matching (?Ron)
10m ?

Crosstalk
-67dB @ 1MHz

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
160ns

Voltage - Supply, Single (V+)
1.65V~4.8V

Length
1.9mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for ST STG4260BJR.

Datasheets:

stmicroelectronics-stg4260bjr-datasheets-6481.pdf

stmicroelectronics-stg4260bjr-datasheets-7793.pdf

stmicroelectronics-stg4260bjr-datasheets-7794.pdf

STG4260BJR Overview

Presented in 12-UFBGA, FCBGA, this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Surface Mount is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 2:1. Increasing operating temperature to around -40°C~85°C TA. Totally, there are 12 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 1.8V voltage supply. A total of 12 pins are injected into the electrical part body. A SPDT switching circuit is used for these analog switches. The circuits in this analogue multiplexer number 2. Using the STG4260 search parameter, you can discover variants of the switch. In this multiplexer, the internal resistance is 500mOhm. For details about the functions of 12 pins, please refer to the datasheets. There is Multiplexer or Switches analog multiplexer like this in the world. It is generally not recommended to supply a voltage higher than 4.8V to the switch device in normal circumstances. The digital multiplexer has a low cost Single supply. 1.65V is the lowest voltage the electrical component should receive. An analogue multiplexer drains from a single voltage supply at 1.65V~4.8V. Putting voltage greater than 50nA on the multiplexer may cause damage. As far as the outputs go, this switch multiplexer utilizes SEPARATE OUTPUT of them.

STG4260BJR Features

1 Channels
Switch Circuit: SPDT
-3db Bandwidth: 50MHz

STG4260BJR Applications

There are a lot of STMicroelectronics
STG4260BJR Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
