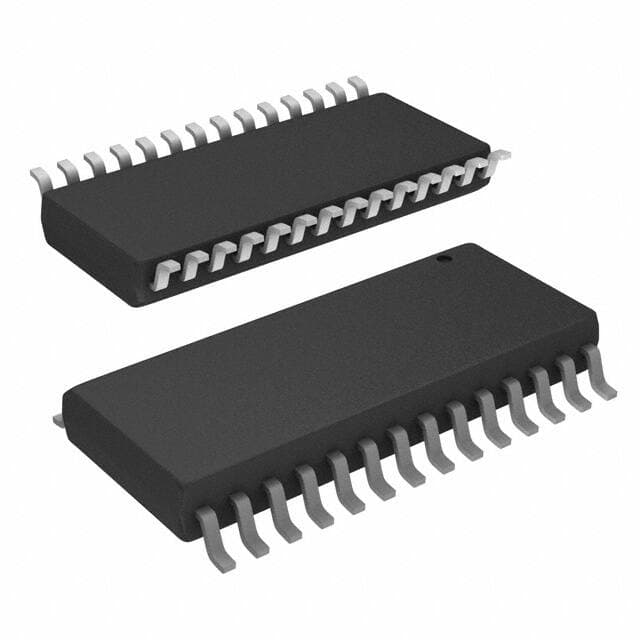

Microchip PIC18LF24J11-I/SO

Manufacturer No:

PIC18LF24J11-I/SO

Manufacturer:

Microchip

Package:

28-SOIC (0.295, 7.50mm Width)

Description:

16KB 8K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP? 18J Series PIC18LF24J11 28 Pin 48MHz 3V 28-SOIC (0.295, 7.50mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC18LF24J11-I/SO information

Microchip PIC18LF24J11-I/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18LF24J11-I/SO.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-SOIC (0.295, 7.50mm Width)

Number of Pins
28

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
PIC® XLP? 18J

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Termination
SMD/SMT

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
Microcontrollers

Max Power Dissipation
1W

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
250

Supply Voltage
3V

Frequency
48MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
2V

Interface
I2C, SPI, UART, USART

Memory Size
16kB

Oscillator Type
Internal

Number of I/O
16

RAM Size
3.8K x 8

Voltage - Supply (Vcc/Vdd)
2V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
PIC

Peripherals
Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
16KB 8K x 16

Connectivity
I2C, SPI, UART/USART

Bit Size
8

Data Converter
A/D 10x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
8b

PWM Channels
YES

Download datasheets and manufacturer documentation for Microchip PIC18LF24J11-I/SO.

PIC18LF24J11-I/SO Overview

A 28-SOIC (0.295, 7.50mm Width) package is included. In total, it has 16 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. PIC® XLP? 18J series components belong to this electrical component. Its program memory size is 16KB 8K x 16. There is a PIC Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 28 terminations in total. The part works on a 8-bit basis. An output voltage of 3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 16kB memory size belongs to the part. PIC18LF24J11 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 48MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 28 pins that are accessible. A total of 5 timers/counters are included in the package. A total of 28 pins are present. Devices based on the PIC series of CPUs are embedded in the device. In total, there are 10 channels for the ADC on this board.

PIC18LF24J11-I/SO Features

28-SOIC (0.295, 7.50mm Width) package
Mounting type of Surface Mount
Microcontrollers subcategory

PIC18LF24J11-I/SO Applications

There are a lot of Microchip Technology
PIC18LF24J11-I/SO Microcontroller applications.

Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
