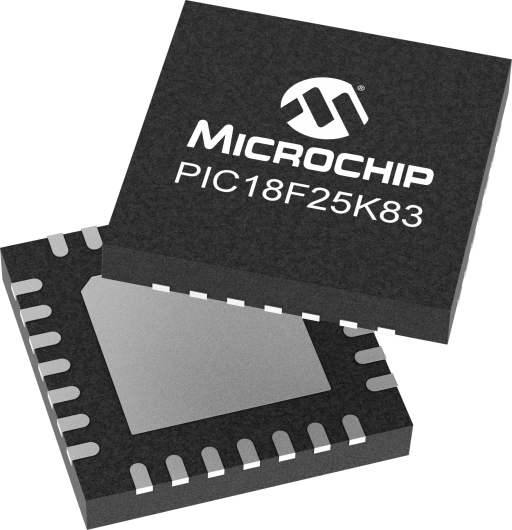

Microchip PIC18F25K83-I/MX
Manufacturer No:
PIC18F25K83-I/MX
Manufacturer:
Microchip
Package:
28-UQFN Exposed Pad
Description:
8 bit MCU family featuring CAN, 12-bit ADC with computation, DMA and Vector Interrupts
Quantity:
In Stock :6840
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sat, Jun 20 - Sun, Jun 21, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC18F25K83-I/MX Information
Microchip PIC18F25K83-I/MX technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18F25K83-I/MX.
- Type
- Parameter
- Program Memory Size (KB)
- 32
- RAM
- 2048
- Data EEPROM (bytes)
- 1024
- Pin Count
- 28
- Operation Voltage Max.(V)
- 5.5
- Operation Voltage Min.(V)
- 1.8
- ADC Resolution Max
- 12
- ADC Channels
- 24
- Zero Cross Detect
- True
- Number of Comparators
- 2
- Type
- Parameter
- SPI
- 1
- I2C
- 1
- Stand alone PWM
- 4
- Low Power
- Yes
- Numerically Controlled Oscillator (NCO)
- 1
- Data Signal Modulator (DSM)
- 1
Download datasheets and manufacturer documentation for Microchip PIC18F25K83-I/MX.
Supporting Collateral:
Application Notes:
Programming Specifications:
Data Sheets:
Brochures:
The PIC18(L)F25/26K83 microcontroller family with CANTM technology
in 28-pins features a 12-bit ADC with Computation (ADC2) automating Capacitive
Voltage Divider (CVD) techniques for advanced touch sensing, averaging,
filtering, oversampling and threshold comparison. In addition, the product
family includes Vectored Interrupt Controller with fixed latency for handling
interrupts, System Bus Arbiter, Direct Memory Access capabilities, UART with
support for Asynchronous DMX, DALI and LIN transmissions, SPI, I2C, memory
features like Memory Access Partition (MAP) to support customers in data
protection and bootloader applications, and Device Information Area (DIA) which
stores factory calibration values to help improve temperature sensor accuracy.
- Supports CAN 1.2, 2.0A and 2.0B
- Six modes of operation
- Supports legacy - Fully backward compatibly
- Interrupt Vector Table
- Programmable single or dual priority
- Two level hardware context saving
- Eliminates need for CPU involvement in data transfers
- Access to all memory spaces and peripherals
- Flexible source and destination message sizes
- Programmable DMA priority
- Memory Access Partition (MAP) - Customize flash partitioning with bootloader write protection
- Device Information Area (DIA) - Dedicated memory area for data storage of temp sensor factory calibration value, factory ID and FVR values for ADC and COMP
- WDT: 500nA @ 1.8V typical
- SLEEP mode: 50nA @ 1.8V typical
- DOZE mode allows CPU to run at a lower clock speed than peripherals
- IDLE and SLEEP modes selectively shut down peripherals and/or core for power reduction
- Automates math functions on input signals:
- Averaging, filter calculations, oversampling and threshold comparison
- Hardware Capacitive Voltage Divider (CVD)
- Automates touch sampling and reduces software size and CPU usage when touch or proximity sensing is required
- 5-bit resolution, rail-to-rail
- Unbuffered I/O pin output
- Comparator hysteresis enable
- Invert output polarity
- Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels
- Senses high voltage AC signal
- Generates interrupts on zero cross
- DMA compatible
- Asynchronous UART, RS-232, RS-485 compatible
- Programmable 1, 1.5, 2 stop bits
- Configurable length bytes
- Arbitrary length data packets
- Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
- SMBus, PMBUSTM compatible
