PIC16F18456T-I/SO Information

Microchip PIC16F18456T-I/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC16F18456T-I/SO.

Type
Parameter

Program Memory Size (KB)
28

RAM
2048

Data EEPROM (bytes)
256

Pin Count
28

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

Max ADC Resolution (bits)
12

ADC Channels
24

Zero Cross Detect
True

Number of Comparators
2

Type
Parameter

SPI
2

I2C
2

Stand alone PWM
2

Low Power
Yes

Numerically Controlled Oscillator (NCO)
1

Data Signal Modulator (DSM)
1

Download datasheets and manufacturer documentation for Microchip PIC16F18456T-I/SO.

The PIC16(L)F184xx 8-bit product family features high resolution Analog, Core Independent Peripherals (CIPs) and communication along with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. The family offers a 12-bit ADC with computation (ADC²), multiple communications interfaces, a temperature sensor; along with memory features like Memory Access Partition (MAP) and Device Information Area (DIA). The 12-bit ADC² automates Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and automatic threshold comparison. The products also have a highly effective power management features such as CPU IDLE/DOZE modes, peripheral module disable (PMD) and peripheral pin select (PPS).

PIC16F18446 Product Family Overview

Check out the Xpress Code Examples

Check out GitHub Code Examples

Enhanced Mid-range Core with 48 Instruction, 16 Stack Levels

12-bit ADC with Computation (ADC2)

5-bit Digital to Analog Converter (DAC)

2 x Comparators

Memory Access Partition (MAP)

Device Information Area (DIA)

2 x 10-bit PWMs

5 x Capture, Compare, PWM (CCP)

Complementary Waveform Generator (CWG)

Numerically Controlled Oscillator (NCO)

Hardware Limit Timer (HLT)

Signal Measurement Timer (SMT)

4 x Configurable Logic Controller (CLC)

Data Signal Modulator (DSM)

Zero Cross Detect (ZCD)

Windowed Watchdog Timer (WWDT)

eXtreme Low Power (XLP)

IDLE and DOZE low power modes

Peripheral Module Disable (PMD)

Peripheral Pin Select (PPS)

Enhanced Power-On/Off-Reset

Low-Power Brown-Out Reset (LPBOR)

Programmable Brown-Out Reset (BOR)

In Circuit Serial Programming (ICSP)

I2C/SPI

EUSART

PIC16LF18456 (1.8V – 3.6V)

PIC16F18456 (2.3V – 5.5V)

PIC16F18456T-I/SO Relevant information

PIC16F18456T-I/SO FAQ

Can I request a quote for PIC16F18456T-I/SO?

PIC16F18456T-I/SO from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.

Why is pricing not shown as a fixed value for PIC16F18456T-I/SO?

The final price for PIC16F18456T-I/SO depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.

Which specifications should I review for PIC16F18456T-I/SO?

PIC16F18456T-I/SO is a Microchip electronic component part. Key details include Numerically Controlled Oscillator (NCO): 1 and Data Signal Modulator (DSM): 1; contact us if you need the specifications verified before sourcing.

When will I receive a quotation for PIC16F18456T-I/SO?

After you submit the RFQ for PIC16F18456T-I/SO, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.

What is the expected shipping time for PIC16F18456T-I/SO?

Once stock for PIC16F18456T-I/SO is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.

Can AIChipLink help find alternatives to PIC16F18456T-I/SO?

Yes. If PIC16F18456T-I/SO is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip electronic component parts and compatible replacement options.

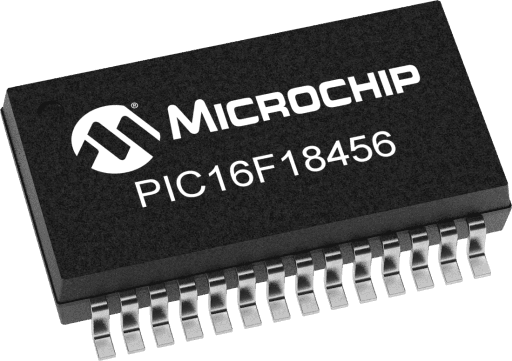

Microchip PIC16F18456T-I/SO
