ONSEMI FNB43060T2
ONSEMI FNB43060T2

ONSEMI FNB43060T2

Manufacturer No:

FNB43060T2

Manufacturer:

ONSEMI

Package:

26-PowerDIP Module (1.024, 26.00mm)

Description:

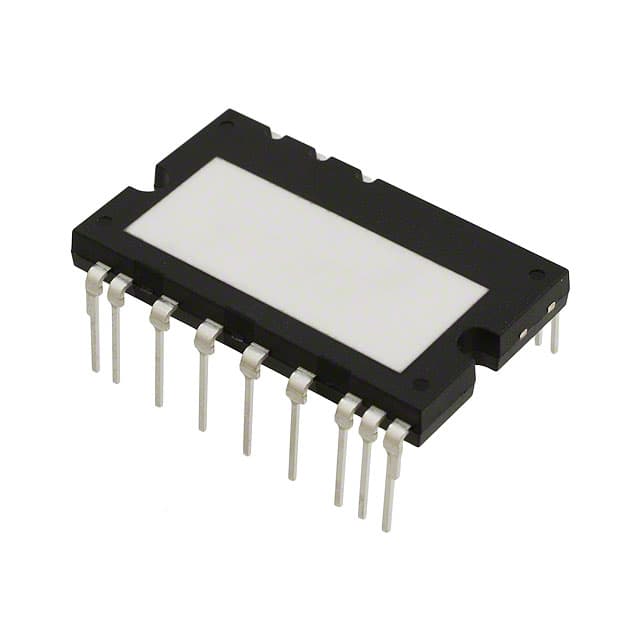

Intelligent Power Module, 600 V, 30A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FNB43060T2 information

ONSEMI FNB43060T2 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FNB43060T2.

  • Type
  • Parameter
  • IO @ 25 °C Min (A)
  • 30
  • VCE(sat) @ 25 °C Typ (V)
  • 1.65
  • Shutdown Pin
  • No
  • Case Outline
  • MODFC
  • Substrate
  • Ceramic
  • Type
  • 3-Phase Inverter IGBT
  • Input Logic
  • Active High
  • Rated Voltage Min (V)
  • 600
  • RDS(on) (Ω)
  • ~NA~
  • Emitter Configuration
  • 3 Emitter Pins
  • Mounting Type
  • DIP
  • Container Type
  • TUBE
  • Container Qty.
  • 72
  • MSL Temp (°C)
  • 0
  • Family
  • SPM45
  • Package Type
  • CDIP-026
  • MSL Type
  • NA

Download datasheets and manufacturer documentation for ONSEMI FNB43060T2.

Datasheet:

Package Drawing:

FNB43060T2 is an advanced Motion SPM 45 module providing a fully−featured, high−performance inverter output stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built−in IGBTs to minimize EMI and losses, while also providing multiple on−module protection features including under−voltage lockouts, over−current shutdown, thermal monitoring of drive IC, and fault reporting. The built−in, high−speed HVIC requires only a single supply voltage and translates the incoming logic−level gate inputs to the high−voltage, high−current drive signals required to properly drive the module’s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.

Application

  • Home Appliance
  • Industrial Motor

End Product

  • Air conditioner
  • Compact industrial Inverters
  • Pumps, Refrigerator, Washing Machine

Feature

  • Low Thermal Resistance Using Ceramic Substrate
  • 600 V − 30 A 3−Phase IGBT Inverter with Integral Gate Driversand Protection
  • UL Certified No. E209204 (UL1557)
  • Low−Loss, Short−Circuit Rated IGBTs
  • Built−In Bootstrap Diodes and Dedicated Vs Pins SimplifyPCB Layout
  • Built−In NTC Thermistor for Temperature Monitoring
  • Separate Open−Emitter Pins from Low−Side IGBTs forThree−Phase Current Sensing
  • Single−Grounded Power Supply
  • Isolation Rating: 2000 Vrms/ min.

User Guide
