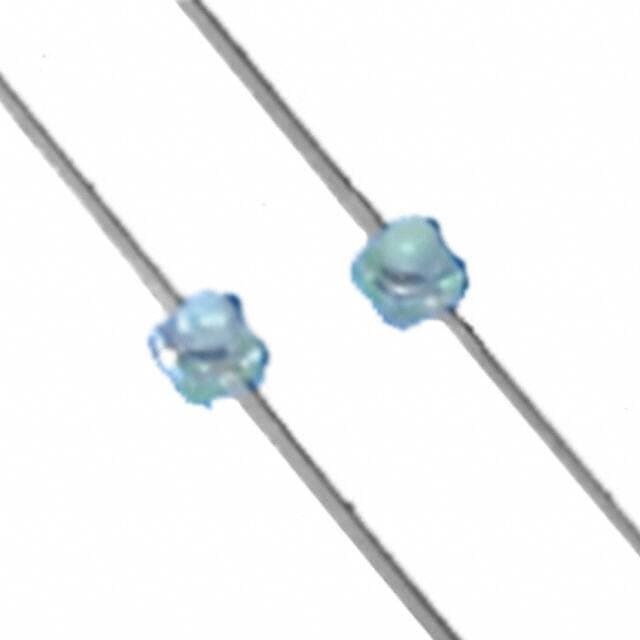

Advanced Photonix PDB-C144
Advanced Photonix PDB-C144

Advanced Photonix PDB-C144

Manufacturer No:

PDB-C144

Manufacturer:

Advanced Photonix

Package:

Axial

Description:

Through Hole -40°C~80°C Tray Wavelength: 950nm Axial 50V 0.29mm2 6ns 2nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C144 information

Advanced Photonix PDB-C144 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C144.

  • Type
  • Parameter
  • Mounting Type
  • Through Hole
  • Package / Case
  • Axial
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Tray
  • Published
  • 2005
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 80°C
  • Min Operating Temperature
  • -40°C
  • Diode Type
  • PIN
  • Viewing Angle
  • 48°
  • Response Time
  • 6ns
  • Voltage - DC Reverse (Vr) (Max)
  • 50V
  • Rise Time
  • 6ns
  • Max Reverse Voltage (DC)
  • 50V
  • Wavelength
  • 950nm
  • Dark Current
  • 2nA
  • Spectral Range
  • 700nm ~ 1100nm
  • Active Area
  • 0.29mm2
  • Current - Dark (Typ)
  • 2nA
  • Color - Enhanced
  • Blue
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C144.

Datasheets:

PDB-C144 Overview


The photodiodes are packaged in the Tray to prevent damage. To ensure safety, photodiodes are put into Axial packages. Continually operating in reverse-bias mode, a photodiode's maximum voltage is 50V. In reverse-bias mode, the voltage for the photodiodes should not exceed 50V continuously. When photodiodes are operating, the temperature should not exceed 80°C. However, the photodiodes should be operated at a minimum temperature of -40°C. Photodiodes exhibit 2nA current even in the absence of light input.

PDB-C144 Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~80°C
Packaging: Tray
Diode Type: PIN
Spectral Range: 700nm ~ 1100nm
Response Time: 6ns
Viewing Angle: 48°


PDB-C144 Applications


There are a lot of Advanced Photonix
PDB-C144 Photodiodes applications.


  • Infrared remote control
  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
