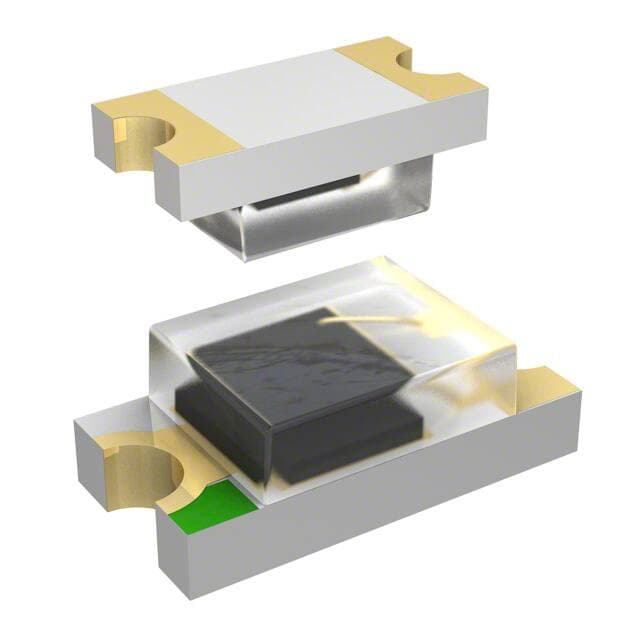

Advanced Photonix PDB-C152SM
Manufacturer No:
PDB-C152SM
Manufacturer:
Advanced Photonix
Package:
1206 (3216 Metric)
Description:
Surface Mount -40°C~80°C Tape & Reel (TR) Wavelength: 660nm 1206 (3216 Metric) 50V 1.66mm2 50ns 2nA
Quantity:
In Stock :9142
