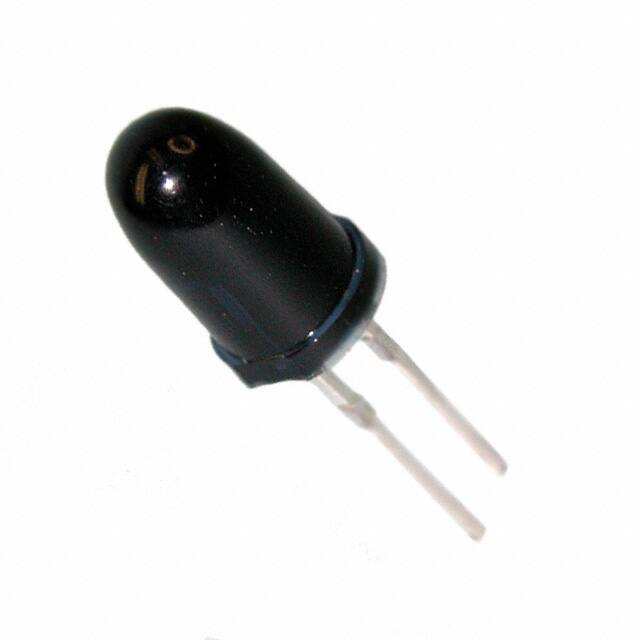

Advanced Photonix PDB-C142F
Manufacturer No:
PDB-C142F
Manufacturer:
Package:
Radial, 5mm Dia (T 1 3/4)
Description:
Through Hole -40°C~80°C Bulk Wavelength: 660nm Radial, 5mm Dia (T 1 3/4) 50V 4.12mm2 50ns 5nA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PDB-C142F information
Advanced Photonix PDB-C142F technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C142F.
- Type
- Parameter
- Mounting Type
- Through Hole
- Package / Case
- Radial, 5mm Dia (T 1 3/4)
- Housing Material
- Plastic
- Operating Temperature
- -40°C~80°C
- Packaging
- Bulk
- Published
- 2005
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Max Operating Temperature
- 80°C
- Min Operating Temperature
- -40°C
- Lead Length
- 26.5mm
- Diode Type
- PIN
- Viewing Angle
- 40°
- Response Time
- 50ns
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Breakdown Voltage
- 25V
- Rise Time
- 50ns
- Max Reverse Voltage (DC)
- 50V
- Wavelength
- 660nm
- Dark Current
- 5nA
- Spectral Range
- 700nm ~ 1100nm
- Active Area
- 4.12mm2
- Current - Dark (Typ)
- 5nA
- Color - Enhanced
- Blue
- Height
- 8.7mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Advanced Photonix PDB-C142F.
Datasheets:
PDB-C142F Overview
Bulk is used to protect the photodiodes from damage. A safety package containing the photodiodes is provided for their protection. When photodiodes are continuously reverse-biased, the maximum voltage they can withstand is 50V. When the photodiodes are reverse-biased, the voltage should never exceed 50V. When photodiodes operate, they should not be subjected to temperatures higher than 80°C. It should be noted that the photodiodes should be operated at -40°C as a minimum operating temperature. It's best to have the breakdown voltage at 25V to make sure the photodiodes work. The current in a photodiode is 5nA even when there is no light input.
PDB-C142F Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~80°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 700nm ~ 1100nm
Response Time: 50ns
Viewing Angle: 40°
PDB-C142F Applications
There are a lot of Advanced Photonix
PDB-C142F Photodiodes applications.
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
