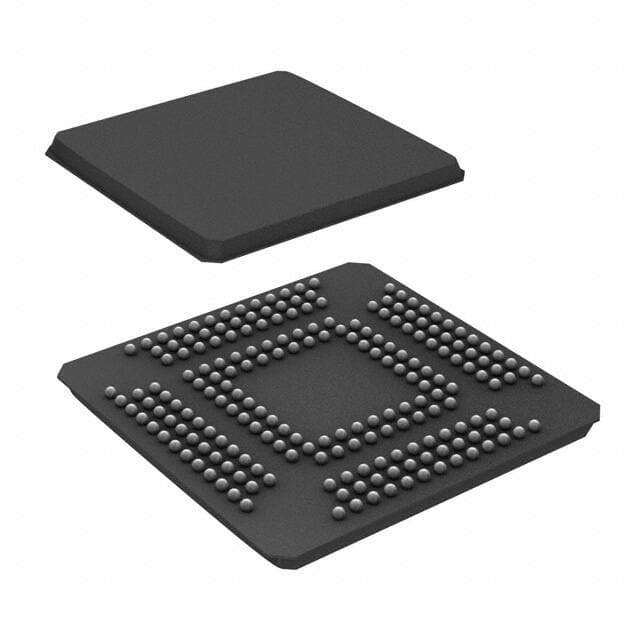

TI PCI1520IZHK

Manufacturer No:

PCI1520IZHK

Manufacturer:

Package:

209-LFBGA

Description:

3.3V 5V CMOS PC Card 7.1 PCI Controllers Interface ICs BOTTOM PCI1520 209 Pins Controller 0.8mm 209-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCI1520IZHK information

TI PCI1520IZHK technical specifications, attributes, parameters and parts with similar specifications to TI PCI1520IZHK.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Package / Case
209-LFBGA

Surface Mount
YES

Number of Pins
209

Weight
511.793941mg

Operating Temperature
-40°C~85°C

Packaging
Tray

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
209

ECCN Code
3A991.A.2

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.31.00.01

Technology
CMOS

Voltage - Supply
3.3V 5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Base Part Number
PCI1520

Operating Supply Voltage
3.3V

Interface
PCI

Clock Frequency
33.33MHz

Protocol
PCI CardBus

Standards
PC Card 7.1

Bus Compatibility
PCI

Data Transfer Rate-Max
16.25 MBps

Height
1.4mm

Length
16mm

Width
16mm

Thickness
900?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI PCI1520IZHK.

PCI1520IZHK Overview

In the 209-LFBGA package, you can find it. Easily transportable packaging in Tray-shape. The temperature should be regulated to -40°C~85°C for reliable operation. You should be able to use it as long as you use a 3.3V 5VV power source. There are terminations of type 209 in it. When the supply voltage is 3.3V, high efficiency can be achieved. PCI1520 numbers are members of this family. Using 209 pins, the device operates. In this device, the clock runs at a frequency of 33.33MHz. It is recommended to set the supply voltage to 3.3V for maximum efficiency.

PCI1520IZHK Features

33.33MHz clock frequency

PCI1520IZHK Applications

There are a lot of Texas Instruments
PCI1520IZHK Controllers Interface ICs applications.

Notebook Docking stations
LAN Servers
PC Motherboards
0 to 10V Dimming Luminaires
Dimmable LED Power Supply
Dimming Control Devices
Commercial LED Lighting
Smart LED Lighting
Portable Appliances
Battery-Operated Devices
