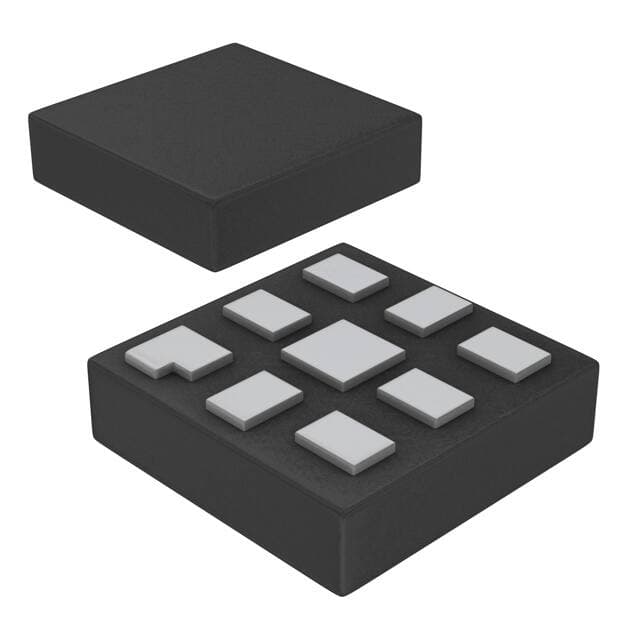

NXP PCA9570GMH
NXP PCA9570GMH

NXP PCA9570GMH

Manufacturer No:

PCA9570GMH

Manufacturer:

NXP

Package:

8-XFQFN Exposed Pad

Description:

8 Termination I/O Expander PCA9570 2.2V 8-XFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCA9570GMH information

NXP PCA9570GMH technical specifications, attributes, parameters and parts with similar specifications to NXP PCA9570GMH.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Surface Mount
  • YES
  • Package / Case
  • 8-XFQFN Exposed Pad
  • Mounting Type
  • Surface Mount
  • Number of I/Os
  • 4
  • Usage Level
  • Industrial grade
  • Published
  • 2010
  • Packaging
  • Tape & Reel (TR)
  • Operating Temperature
  • -40°C~85°C
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • Voltage - Supply
  • 1.1V~3.6V
  • Terminal Position
  • QUAD
  • Number of Functions
  • 1
  • Supply Voltage
  • 2.2V
  • Base Part Number
  • PCA9570
  • Pin Count
  • 8
  • JESD-30 Code
  • R-PQCC-N8
  • Output Type
  • Push-Pull
  • Interface
  • I2C, SMBus
  • Clock Frequency
  • 100kHz
  • Interrupt Output
  • No
  • Current - Output Source/Sink
  • 4mA
  • Width
  • 1.2mm
  • Height Seated (Max)
  • 0.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP PCA9570GMH.

Datasheets:

Environmental Information:

Product Description:

The PCA9570GMH is a surface-mount I2C/SMBus I/O expander from NXP USA Inc. designed for a wide range of applications. This 8-pin, 8-XFQFN exposed pad package IC is RoHS3 compliant and operates within a temperature range of -40°C to 85°C.

Features:

  • I2C and SMBus interfaces for easy integration with microcontrollers
  • Power-on reset (POR) feature ensures reliable operation
  • Push-pull output type for improved noise immunity
  • 4mA output current source/sink capability
  • Compatible with 1.1V to 3.6V supply voltage

Applications:

  • Primary applications: Industrial automation, medical devices, and consumer electronics
  • Secondary applications: Automotive systems, aerospace, and defense

Alternative Parts:

  • PCA9570 (base part number)
  • PCA9570GMH (specific part number with a 7-week factory lead time)

Embedded Modules:

  • Various industrial control systems
  • Medical device interfaces
  • Consumer electronics peripherals

FAQs:

Q: What is the operating temperature range of the PCA9570GMH? A: The operating temperature range is -40°C to 85°C.

Q: What is the supply voltage range of the PCA9570GMH? A: The supply voltage range is 1.1V to 3.6V.

Q: Is the PCA9570GMH RoHS compliant? A: Yes, the PCA9570GMH is RoHS3 compliant.

Q: What is the packaging type of the PCA9570GMH? A: The PCA9570GMH is available in a tape and reel (TR) package.

Q: What is the factory lead time for the PCA9570GMH? A: The factory lead time for the PCA9570GMH is 7 weeks.

Q: Is the PCA9570GMH suitable for high-reliability applications? A: Yes, the PCA9570GMH has a moisture sensitivity level (MSL) of 1, indicating it is suitable for high-reliability applications.
