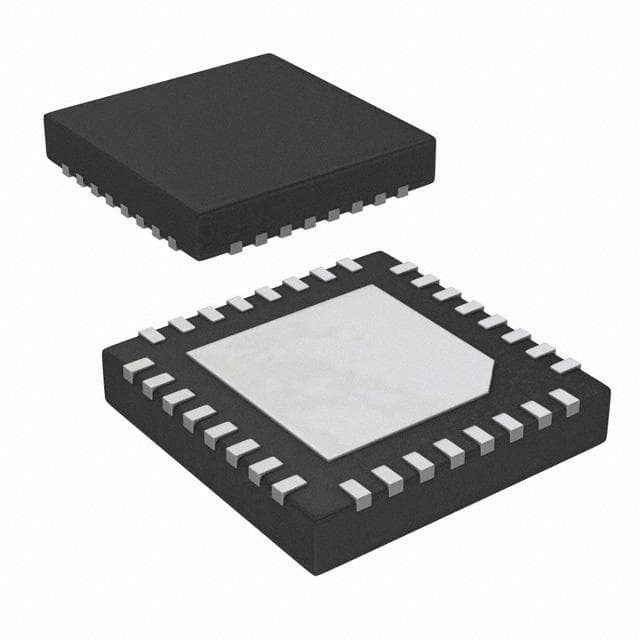

Renesas ISL9441IRZ

Manufacturer No:

ISL9441IRZ

Manufacturer:

Renesas

Package:

QFN

Description:

0.5mm PMIC 32 Pin QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9441IRZ information

Renesas ISL9441IRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9441IRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
4

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Temperature Grade
INDUSTRIAL

Current - Output
100mA

Control Mode
CURRENT-MODE

Frequency - Switching
340kHz

Input Voltage (Max)
5.6V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
5mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9441IRZ.

Datasheets:

intersil-isl9441irz-datasheets-2211.pdf

ISL9441IRZ Overview

For voltage regulators' voltage regulators' transportation, it is packaged in a QFN shape.As a result, voltage regulator supports a total of 4 outputs.Among the switching regulator's terminals are 32 terminals.Starting with 32 pins, the pinouts of the switching regulator begin.During relow soldering, temperature should peak 260.32-shaped pins are used in this voltage regulator.In the industry, Switching Regulator or Controllers voltage regulator DC to DCs like this one play an important role.A Surface Mount is included for mounting it to PCBs or other boards.Temperatures below -40°C are not suitable.A temperature higher than 85°C should not be used.
