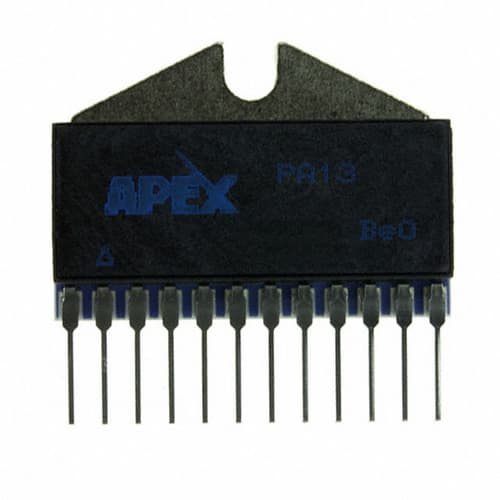

CIRRUS LOGIC PA13

Manufacturer No:

PA13

Manufacturer:

CIRRUS LOGIC

Package:

SIP

Description:

1 Channels 10A per Channel 12nA 74 dB Instrumentational OP Amps 0.03μA 12 Pins SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA13 information

CIRRUS LOGIC PA13 technical specifications, attributes, parameters and parts with similar specifications to CIRRUS LOGIC PA13.

Type
Parameter

Mount
Through Hole

Package / Case
SIP

Number of Pins
12

JESD-609 Code
e0

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
TIN LEAD

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Subcategory
Operational Amplifiers

Technology
HYBRID

Terminal Position
SINGLE

Number of Functions
1

Supply Voltage
40V

Terminal Pitch
2.54mm

Pin Count
12

Power Supplies
+-40V

Temperature Grade
MILITARY

Number of Channels
1

Operating Supply Current
25mA

Supply Current-Max
50mA

Slew Rate
4 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Current - Input Bias
12nA

Output Current per Channel
10A

Input Offset Voltage (Vos)
2mV

Bandwidth
4MHz

Gain Bandwidth Product
4MHz

Neg Supply Voltage-Nom (Vsup)
-40V

Unity Gain BW-Nom
4000 kHz

Voltage Gain
110dB

Average Bias Current-Max (IIB)
0.03μA

Low-Offset
NO

Frequency Compensation
YES

Max Dual Supply Voltage
45V

Min Dual Supply Voltage
10V

Bias Current-Max (IIB) @25C
0.03μA

Power
YES

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CIRRUS LOGIC PA13.

PA13 Overview

There is a SIP case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. We are approaching the 12h termination of the year. In total, there are 12 pins on this op amp ic. This linear amplifier should be powered by an 40V battery. There are two types of Operational Amplifiers op amps in this case, and this device falls into one of them. 12 pins are located on the operational amplifiers. The input offset voltage is 2mV. The buffer amplifier is capable of operating from a supply current of 25mA . It is recommended to keep the voltage gain at 110dB at all times. On the buffer amps, there are 1 channels that can be used. For this linear amplifier to work, the temperature should not be below -25°C. In order to avoid damage to the product, operational amplifiers should only be used at temperatures below 85°C. In order for this electronic part to be conducted successfully, you should use a dual supply voltage of 45V.

PA13 Features

12 Pins
supply voltage of 40V
110dB voltage gain

PA13 Applications

There are a lot of Cirrus Logic
PA13 Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
