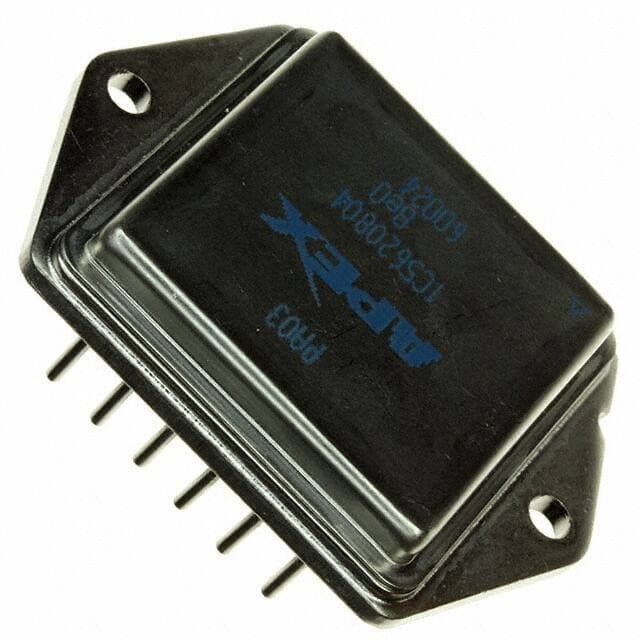

APEX PA03

Manufacturer No:

PA03

Manufacturer:

APEX

Package:

12-DIP Module

Description:

30A per Channel 5pA 108 dB Instrumentational OP Amps 0.00005μA 30V~150V ±15V~75V PA03 12 Pins 12-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA03 information

APEX PA03 technical specifications, attributes, parameters and parts with similar specifications to APEX PA03.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
12-DIP Module

Number of Pins
12

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
Apex Precision Power®

Published
2012

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
50V

Terminal Pitch
5.08mm

Reach Compliance Code
not_compliant

Base Part Number
PA03

Pin Count
12

Qualification Status
Not Qualified

Number of Circuits
1

Operating Supply Current
125mA

Supply Current-Max
300mA

Slew Rate
8V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
108 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
30V~150V ±15V~75V

Output Current per Channel
30A

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
1MHz

Neg Supply Voltage-Nom (Vsup)
-50V

Unity Gain BW-Nom
1000 kHz

Voltage Gain
102dB

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
NO

Supply Voltage Limit-Max
75V

Low-Bias
YES

Download datasheets and manufacturer documentation for APEX PA03.

Datasheets:

apexmicrotechnology-pa03-datasheets-5581.pdf

apexmicrotechnology-pa03-datasheets-5582.pdf

PA03 Overview

A 12-DIP Module case is used to package the op amp. Power-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Bulk case. It is estimated that there will be 12 terminations in the next few months. There are a total of 12 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 50V volts. It should be noted that this op amp is a type of Operational Amplifier device. There are 12 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 500μV. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -25°C~85°C . An 125mA volt supply current is needed for this linear amplifier to operate. There should be no change in the voltage gain. On this instrumentation amplifier, there are 1 circuits that are connected together. The Apex Precision Power® indicates the series number of the op amp.

PA03 Features

12 Pins
supply voltage of 50V
102dB voltage gain

PA03 Applications

There are a lot of Apex Microtechnology
PA03 Instrumentational OP Amps applications.

Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
