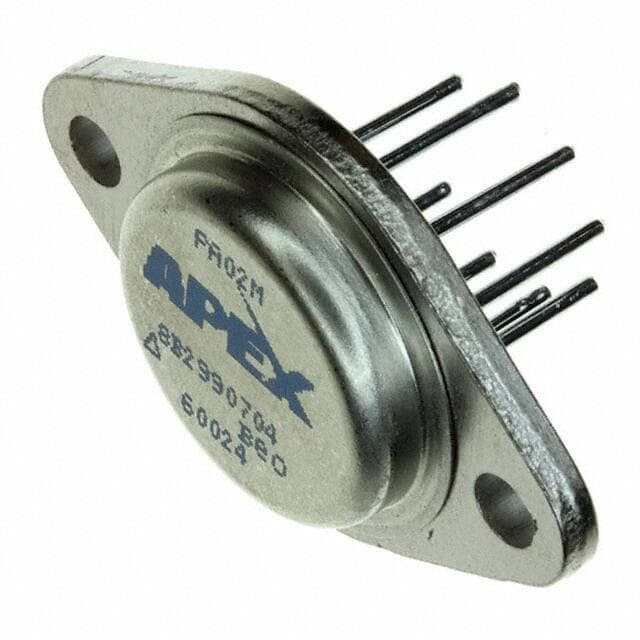

APEX PA02M
Manufacturer No:
PA02M
Manufacturer:
Package:
TO-3-8
Description:
5A per Channel 50pA 100 dB Instrumentational OP Amps 0.0002μA 14V~38V ±7V~19V PA02 2 Pins TO-3-8
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PA02M information
APEX PA02M technical specifications, attributes, parameters and parts with similar specifications to APEX PA02M.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- TO-3-8
- Operating Temperature
- -55°C~125°C
- Packaging
- Tube
- Series
- Apex Precision Power®
- Published
- 2012
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- TIN/LEAD (SN/PB)
- Subcategory
- Operational Amplifier
- Technology
- HYBRID
- Terminal Position
- BOTTOM
- Terminal Form
- PIN/PEG
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Supply Voltage
- 15V
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- PA02
- Pin Count
- 2
- Qualification Status
- Not Qualified
- Number of Circuits
- 1
- Operating Supply Current
- 27mA
- Supply Current-Max
- 60mA
- Slew Rate
- 20V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- Power
- Common Mode Rejection Ratio
- 100 dB
- Current - Input Bias
- 50pA
- Voltage - Supply, Single/Dual (±)
- 14V~38V ±7V~19V
- Output Current per Channel
- 5A
- Input Offset Voltage (Vos)
- 5mV
- Gain Bandwidth Product
- 4.5MHz
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Unity Gain BW-Nom
- 4500 kHz
- Average Bias Current-Max (IIB)
- 0.0002μA
- Low-Offset
- NO
- Frequency Compensation
- YES
- Low-Bias
- YES
- Bias Current-Max (IIB) @25C
- 0.0002μA
- Screening Level
- MIL-STD-883 Class B (Modified)
- Power
- YES
- Voltage Gain-Min
- 20000
Download datasheets and manufacturer documentation for APEX PA02M.
PA02M Overview
A TO-3-8 case is used to package the op amp. Power-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be 8 terminations in the next few months. There are a total of 2 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Operational Amplifier device. In terms of the input offset voltage, instrumentation amplifier rates at 5mV. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -55°C~125°C . An 27mA volt supply current is needed for this linear amplifier to operate. On this instrumentation amplifier, there are 1 circuits that are connected together. The Apex Precision Power® indicates the series number of the op amp. There is a minimum voltage gain of 20000 that this buffer op amp is capable of conducting.
PA02M Features
2 Pins
supply voltage of 15V
PA02M Applications
There are a lot of Apex Microtechnology
PA02M Instrumentational OP Amps applications.
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
