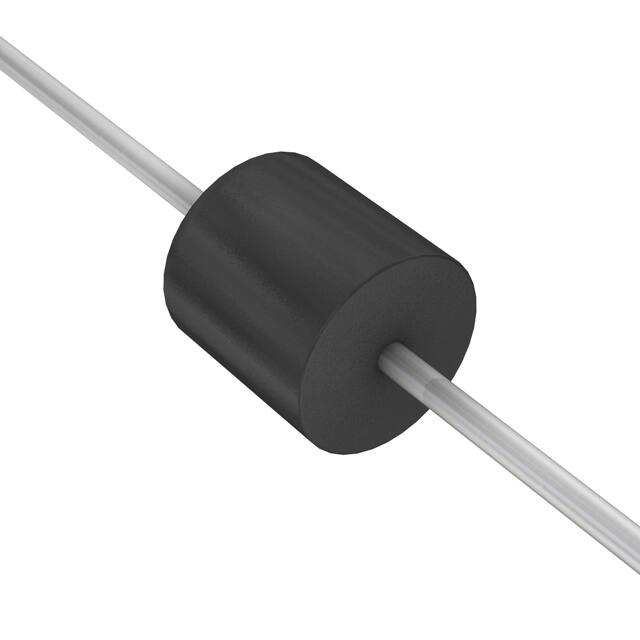

VISHAY P600K-E3/54
VISHAY P600K-E3/54

VISHAY P600K-E3/54

Manufacturer No:

P600K-E3/54

Manufacturer:

VISHAY

Package:

P600, Axial

Description:

Standard Diode Rectifier Standard Recovery >500ns, > 200mA (Io) 900mV @ 6A -50°C~150°C 5?A @ 800V 2-Termination Tape & Reel (TR) P600, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

P600K-E3/54 information

VISHAY P600K-E3/54 technical specifications, attributes, parameters and parts with similar specifications to VISHAY P600K-E3/54.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • P600, Axial
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -50°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Terminal Form
  • WIRE
  • Base Part Number
  • P600K
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Speed
  • Standard Recovery >500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 5?A @ 800V
  • Voltage - Forward (Vf) (Max) @ If
  • 900mV @ 6A
  • Case Connection
  • ISOLATED
  • Forward Current
  • 6A
  • Operating Temperature - Junction
  • -50°C~150°C
  • Max Surge Current
  • 400A
  • Output Current-Max
  • 6A
  • Application
  • GENERAL PURPOSE
  • Breakdown Voltage
  • 800V
  • Forward Voltage
  • 1.3V
  • Max Reverse Voltage (DC)
  • 800V
  • Average Rectified Current
  • 6A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 2.5 ?s
  • Peak Reverse Current
  • 5?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 800V
  • Capacitance @ Vr, F
  • 150pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 400A
  • Reverse Voltage
  • 800V
  • Max Forward Surge Current (Ifsm)
  • 400A
  • Recovery Time
  • 2.5 ?s

Download datasheets and manufacturer documentation for VISHAY P600K-E3/54.

Datasheets:

RohsStatement:

P600K-E3/54 Overview


An appropriate reverse voltage is 800V.Devices with this rating have an average rectified current of 6A volts.6A is the maximum value of forward current.There can be no surge current above 400A.There is no maximum output current when the value is 6A.Using the data chart, the peak reverse is 5?A in the datasheets.In diodes, the breakdown voltage is defined as the largest reverse voltage that can be applied without increasing the leakage current exponentially, and its breakdown voltage is 800V.

P600K-E3/54 Features


an average rectified current of 6A volts
6A is the maximum value
the peak reverse is 5?A
the breakdown voltage of a diode is 800V


P600K-E3/54 Applications


There are a lot of Vishay Semiconductor Diodes Division
P600K-E3/54 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
