Renesas 527R-01ILFT
Renesas 527R-01ILFT

Renesas 527R-01ILFT

Manufacturer No:

527R-01ILFT

Manufacturer:

Renesas

Package:

QSOP

Description:

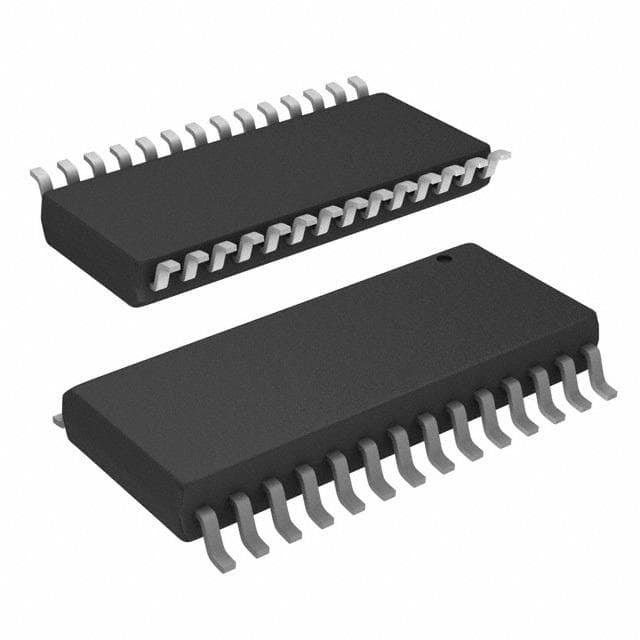

3.3V 140MHz Clock Generators 28 Pins QSOP 28 Terminals Tape and Reel

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

527R-01ILFT information

Renesas 527R-01ILFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 527R-01ILFT.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Package / Case
  • QSOP
  • Number of Pins
  • 28
  • Packaging
  • Tape and Reel
  • Published
  • 1999
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.635mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 28
  • Qualification Status
  • Not Qualified
  • Temperature Grade
  • INDUSTRIAL
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 3.6V
  • Min Supply Voltage
  • 3V
  • Frequency (Max)
  • 140MHz
  • Family
  • 527
  • Output Characteristics
  • 3-STATE
  • Input
  • Clock
  • Max I(ol)
  • 0.025 A
  • PLL
  • Yes
  • Same Edge Skew-Max (tskwd)
  • 0.5 ns
  • Number of True Outputs
  • 2
  • Length
  • 9.9mm
  • Width
  • 3.8mm
  • Thickness
  • 1.47mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas 527R-01ILFT.

Datasheets:

527R-01ILFT Overview


It is packaged using the Tape and Reel method since it is a clock IC. Embedded in the QSOP package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 260 when reflowing. It contains a total of 28 terminations within RF synthesizer. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be Clock. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 140MHz. In this IC, a 28-bit frequency generator is designed specifically for use in microprocessors. There are a number of 28 pins that are available on the clock generators. There are -40°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 85°C with a reduced performance. There is a maximum supply voltage of 3.3V that frequency generators can handle. Low timing skew is provided by this analog clock generator at maximum 0.5 ns. A analog clock generator with 2 true output enable pins is configured for this application. When searching for parts belonging to the 527 family, similar electric components can be found. There is no point in supplying this frequency generator with a voltage higher than 3.6V. PLLs have a minimum supply voltage limit of 3V.

527R-01ILFT Features


Available in the QSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
2 true outputs


527R-01ILFT Applications


There are a lot of Integrated Device Technology (IDT)
527R-01ILFT Clock Generators applications.


  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
  • FPGA and processor clocks
  • Line cards used in telephone exchange
  • Fiber Channel
  • PCI express cards
  • Infotainment systems
  • Medical equipment
  • Multi-function printers
  • Media broadcast servers
