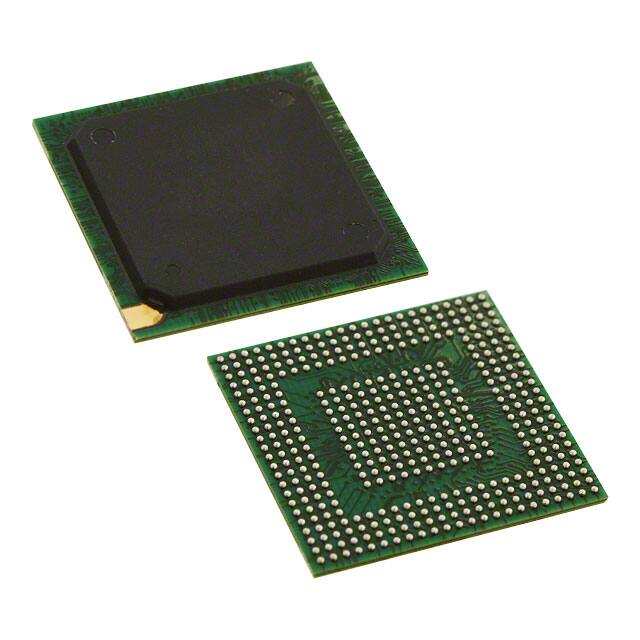

NXP P1014NSE5DFA
NXP P1014NSE5DFA

NXP P1014NSE5DFA

Manufacturer No:

P1014NSE5DFA

Manufacturer:

NXP

Package:

425-FBGA

Description:

0.8mm PowerPC e500v2 32-bit Microprocessor QorIQ P1 Series P1014 1V 425-FBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

P1014NSE5DFA information

NXP P1014NSE5DFA technical specifications, attributes, parameters and parts with similar specifications to NXP P1014NSE5DFA.

  • Type
  • Parameter
  • Package / Case
  • 425-FBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • 0°C~105°C TA
  • Packaging
  • Tray
  • Series
  • QorIQ P1
  • Published
  • 2010
  • JESD-609 Code
  • e2
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 425
  • ECCN Code
  • 5A002.A
  • Terminal Finish
  • TIN COPPER/TIN SILVER
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 1V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • P1014
  • JESD-30 Code
  • S-PBGA-B425
  • Supply Voltage-Max (Vsup)
  • 1.05V
  • Supply Voltage-Min (Vsup)
  • 0.95V
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR, RISC
  • Core Processor
  • PowerPC e500v2
  • Clock Frequency
  • 100MHz
  • Bit Size
  • 32
  • Boundary Scan
  • YES
  • Low Power Mode
  • YES
  • Format
  • FLOATING POINT
  • Integrated Cache
  • YES
  • Ethernet
  • 10/100/1000Mbps (2)
  • Number of Cores/Bus Width
  • 1 Core 32-Bit
  • Graphics Acceleration
  • No
  • RAM Controllers
  • DDR3, DDR3L
  • USB
  • USB 2.0 + PHY (1)
  • Additional Interfaces
  • DUART, I2C, MMC/SD, SPI
  • Co-Processors/DSP
  • Security; SEC 4.4
  • Security Features
  • Boot Security, Cryptography, Random Number Generator, Secure Fusebox
  • SATA
  • SATA 3Gbps (2)
  • Length
  • 19mm
  • Height Seated (Max)
  • 1.9mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP P1014NSE5DFA.

Datasheets:

P1014NSE5DFA Overview


Shipping overseas is convenient since the embedded microprocessor is packed in 425-FBGA. In order to provide high reliability, advanced packaging method Tray is used. Cores/Bus width is 1 Core 32-Bit. Recognize operating temperatures around 0°C~105°C TA. The cpu microprocessor belongs to the QorIQ P1 series. The CPU is cored with a PowerPC e500v2 processor. The CPU uses DDR3, DDR3L RAM controllers. This microprocessor features interfaces DUART, I2C, MMC/SD, SPI. In terms of uPs and uCs as well as peripheral ICs, this is a MICROPROCESSOR, RISC. The microprocessor can be searched for with P1014 if you are looking for variants. In total, there are 425 terminations. When the voltage supply is 1V, the cpu microprocessor should be powered on and run. In terms of architecture, it is a 32-Bit system. It can supply a maximum current of 1.05V. 100MHz is the microprocessor's clock frequency.

P1014NSE5DFA Features


PowerPC e500v2 Core
32-Bit Structure


P1014NSE5DFA Applications


There are a lot of NXP USA Inc.
P1014NSE5DFA Microprocessor applications.


  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
