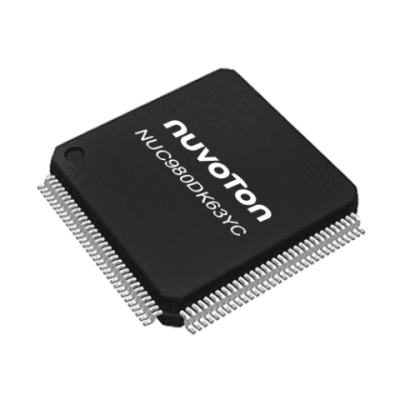

NUVOTON NUC980DK63YC
Manufacturer No:
NUC980DK63YC
Manufacturer:
Package:
128-LQFP
Description:
ARM926EJ-S Microprocessor - Series 300MHz 128-LQFP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NUC980DK63YC information
NUVOTON NUC980DK63YC technical specifications, attributes, parameters and parts with similar specifications to NUVOTON NUC980DK63YC.
- Type
- Parameter
- Package / Case
- 128-LQFP
- Supplier Device Package
- 128-LQFP (14x14)
- Package
- Tray
- Mfr
- Nuvoton Technology Corporation
- Product Status
- Active
- DRAM size
- 64KB
- Product Series
- NUC980 Industrial control IoT series
- Stack DDR Size
- 64MB
- Crypto
- √
- SPI Flash Boot
- √
- CMOS Interface
- 2
- eMMC I/F
- √
- SD / SDIO
- 2
- NAND Flash Boot
- √
- SD Memory Boot
- √
- Timer (32-bit)
- 64
- ADC (12bit) CH
- 8
- Real-Time Clock (RTC)
- √
- UART
- 10
- Operating Temperature
- -40°C ~ 85°C (TA)
- Frequency
- 300MHz
- Speed
- 300MHz
- Core Processor
- ARM926EJ-S
- Voltage - I/O
- 3.3V
- Number of Cores/Bus Width
- 1 Core, 32-Bit
- Graphics Acceleration
- Yes
- RAM Controllers
- DDR, DDR2, LPDDR2
- USB
- USB 2.0 (3)
- Additional Interfaces
- CANbus, DMA, eMMC/SD/SDIO, GPIO, I²C, I²S, LINbus, SPI, UART/USART
- Number of GPIO
- 92
- Security Features
- AES, ECC, SHA, TRNG
- Display & Interface Controllers
- LCD
- SPI
- 3
- PWM
- 8
- Operating Voltage
- 3~3.6V
Download datasheets and manufacturer documentation for NUVOTON NUC980DK63YC.
Product Description:
The NUC980DK63YC is a high-performance, low-power, and highly-integrated microprocessor designed by Nuvoton Technology Corporation. This ARM926EJ-S based microprocessor is packaged in a 128-pin LQFP (14x14) package, making it suitable for a wide range of applications.
Features:
- High-speed operation at 300MHz
- Support for DDR, DDR2, and LPDDR2 RAM controllers
- Three USB 2.0 interfaces for high-speed data transfer
- Two 10/100Mbps Ethernet interfaces for network connectivity
- LCD display and interface controllers for graphics acceleration
- CANbus, DMA, eMMC/SD/SDIO, GPIO, I2C, I2S, LINbus, SPI, UART/USART additional interfaces for expanded connectivity
- Security features including AES, ECC, SHA, and TRNG for enhanced data protection
Applications:
- Primary applications: Industrial control systems, automotive infotainment systems, and medical devices
- Secondary applications: Consumer electronics, home automation systems, and industrial automation systems
Alternative Parts:
- NUC980DK63YC is a part of the Nuvoton's NUC98x series of microprocessors. Alternative parts in this series include:
- NUC980DK63YC: 128-LQFP package, 300MHz speed
- NUC980DK63YC: 144-LQFP package, 300MHz speed
- NUC980DK63YC: 176-LQFP package, 300MHz speed
Embedded Modules:
- This microprocessor is used in various embedded modules, including:
- Industrial control modules for automation systems
- Automotive infotainment modules for in-vehicle entertainment systems
- Medical devices for patient monitoring and treatment
FAQs:
Q: What is the operating temperature range of the NUC980DK63YC? A: The operating temperature range is -40°C to 85°C (TA).
Q: What is the core processor used in the NUC980DK63YC? A: The core processor is an ARM926EJ-S.
Q: What is the package type of the NUC980DK63YC? A: The package type is a 128-LQFP (14x14) package.
Q: What is the maximum speed of the NUC980DK63YC? A: The maximum speed is 300MHz.
Q: What is the voltage range of the NUC980DK63YC? A: The voltage range is 3.3V.
Q: What are the security features of the NUC980DK63YC? A: The security features include AES, ECC, SHA, and TRNG.
