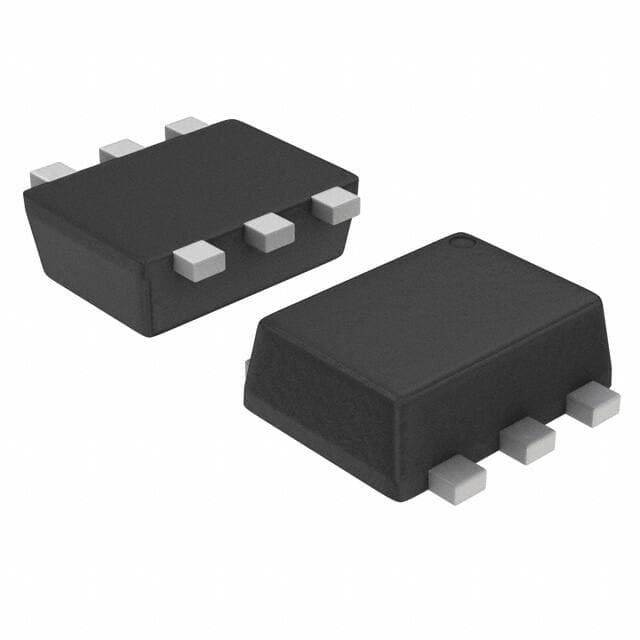

ONSEMI NSBC114TDXV6T1G

Manufacturer No:

NSBC114TDXV6T1G

Manufacturer:

ONSEMI

Package:

SOT-563, SOT-666

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NSBC114TDXV6T1G information

ONSEMI NSBC114TDXV6T1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NSBC114TDXV6T1G.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
2 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-563, SOT-666

Number of Pins
6

Packaging
Tape & Reel (TR)

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
150°C

Min Operating Temperature
-55°C

Additional Feature
BUILT IN BIAS RESISTOR

Subcategory
BIP General Purpose Small Signal

Voltage - Rated DC
50V

Max Power Dissipation
500mW

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Current Rating
100mA

Base Part Number
NSBC1*

Pin Count
6

Number of Elements
2

Polarity
NPN

Element Configuration
Dual

Power Dissipation
357mW

Transistor Application
SWITCHING

Transistor Type
2 NPN - Pre-Biased (Dual)

Collector Emitter Voltage (VCEO)
50V

Max Collector Current
100mA

DC Current Gain (hFE) (Min) @ Ic, Vce
160 @ 5mA 10V

Current - Collector Cutoff (Max)
500nA

Vce Saturation (Max) @ Ib, Ic
250mV @ 1mA, 10mA

Collector Emitter Breakdown Voltage
50V

Max Breakdown Voltage
50V

hFE Min
160

Resistor - Base (R1)
10k ?

Continuous Collector Current
100mA

Radiation Hardening
No

RoHS Status
ROHS3 Compliant

Lead Free
Lead Free
