ONSEMI NCP1252ADR2G
ONSEMI NCP1252ADR2G

ONSEMI NCP1252ADR2G

Manufacturer No:

NCP1252ADR2G

Manufacturer:

ONSEMI

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

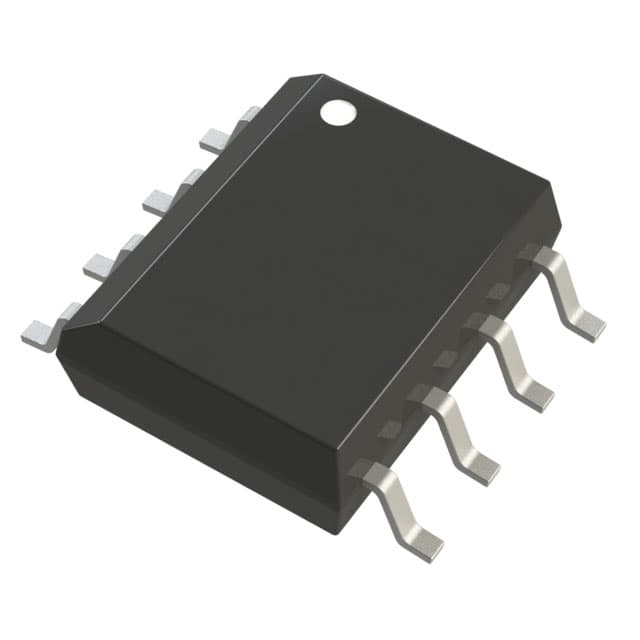

PWM Controller, Current Mode, for Forward and Flyback Applications

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1252ADR2G information

ONSEMI NCP1252ADR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1252ADR2G.

  • Type
  • Parameter
  • Short Circuit Protection
  • Yes
  • Drive Cap. (mA)
  • 500 / 800
  • Stand-by Mode
  • Yes
  • UVLO (V)
  • 9 to 10
  • MSL Type
  • 1
  • MSL Temp (°C)
  • 260
  • Container Qty.
  • 2500
  • Topology
  • Flyback
  • fsw Typ (kHz)
  • Up to 500
  • VCC Max (V)
  • 28
  • Package Type
  • SOIC-8
  • Container Type
  • REEL
  • Latch
  • Yes
  • Soft Start
  • Yes
  • Case Outline
  • 751-07
  • Control Mode
  • Current Mode

Download datasheets and manufacturer documentation for ONSEMI NCP1252ADR2G.

Datasheet:

Package Drawing:

The NCP1252 controller offers everything needed to build cost effective and reliable ac-dc switching supplies dedicated to ATX power supplies or any forward application. Thanks to the use of an internally fixed timer, NCP1252 detects an output overload without relying on the auxiliary Vcc. A Brown-Out input offers protection against low input voltages and improves the converter safety. Finally, the SOIC-8 package saves PCB space and represents a solution of choice in cost sensitive project.

Application

  • Power supplies for PC silver boxes
  • Ac-dc adapter converter
  • Game Adapter
  • Flyback and Forward Application

End Product

  • Desktops

Feature

  • Peak current mode control
  • Adjustable switching frequency
  • Latched primary overcurrent protection with 10 ms fixed delay
  • Adjustable soft start timer
  • Auto recovery brown out detection
  • Extended Vcc range up to 28 V with auto recovery UVLO
  • Internal 160 ns leading edge blanking
  • Frequency jittering
  • Adjustable internal ramp compensation
  • +500 mA / -800 mA Source/Sink current driver capability
  • Skip cycle operation in light/no load operation
  • SOIC-8 package
