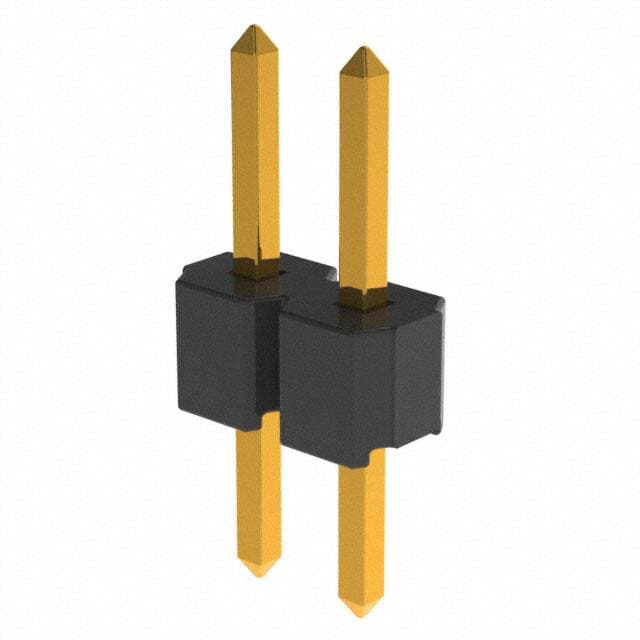

Sullins Connector Solutions NRPN012PAEN-RC

Manufacturer No:

NRPN012PAEN-RC

Manufacturer:

Sullins Connector Solutions

Package:

Description:

Header Solder Brass Bulk Through Hole Gold Polyamide (PA6T), Nylon 6T 2-Position Board to Board 0.079 2.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NRPN012PAEN-RC information

Sullins Connector Solutions NRPN012PAEN-RC technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions NRPN012PAEN-RC.

Type
Parameter

Contact Material
Brass

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-40°C~105°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

Connector Type
Header

Number of Positions
2

Voltage - Rated
150V

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

Contact Type
Male Pin

Current Rating (Amps)
1A

Insulation Height
0.079 2.00mm

Style
Board to Board

Number of Positions Loaded
All

Insulation Color
Black

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.110 2.79mm

Shrouding
Unshrouded

Contact Length - Mating
0.141 3.60mm

Contact Finish Thickness - Mating
Flash

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sullins Connector Solutions NRPN012PAEN-RC.

Environmental Information:

sullinsconnectorsolutions-wct001mct-environmentalinformation-6146.pdf

NRPN012PAEN-RC Overview

The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.It operates at an operating temperature of -40°C~105°C.

NRPN012PAEN-RC Features

NRPN012PAEN-RC Applications

There are a lot of Sullins Connector Solutions
NRPN012PAEN-RC Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
