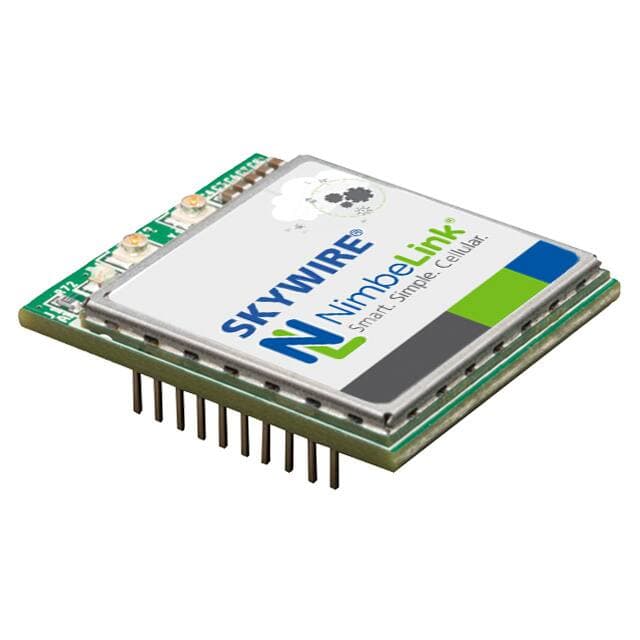

NimbeLink, LLC NL-SW-EVDO-V
NimbeLink, LLC NL-SW-EVDO-V

NimbeLink, LLC NL-SW-EVDO-V

Manufacturer No:

NL-SW-EVDO-V

Manufacturer:

NimbeLink, LLC

Package:

20-DIP Module

Description:

800MHz 1.9GHz Cellular -40°C~85°C 3.5V~4.3V UART, USB Bulk Antenna Not Included, U.FL 24.5dBm CDMA, EV-DO 20-DIP Module

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NL-SW-EVDO-V information

NimbeLink, LLC NL-SW-EVDO-V technical specifications, attributes, parameters and parts with similar specifications to NimbeLink, LLC NL-SW-EVDO-V.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 20-DIP Module
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • Skywire?
  • Published
  • 2014
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Voltage - Supply
  • 3.5V~4.3V
  • Frequency
  • 800MHz 1.9GHz
  • Interface
  • UART, USB
  • Protocol
  • CDMA, EV-DO
  • Power - Output
  • 24.5dBm
  • RF Family/Standard
  • Cellular
  • Antenna Type
  • Antenna Not Included, U.FL
  • Serial Interfaces
  • UART, USB
  • Current - Receiving
  • 750mA
  • Current - Transmitting
  • 750mA
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NimbeLink, LLC NL-SW-EVDO-V.

Datasheets:

NL-SW-EVDO-V Overview


In this case, RF Transceiver' mounting method is Through Hole.For optimal performance, this RF Transceiver module makes use of the Bulk package.The operating temperature should be kept at -40°C~85°C when the Transceiver is in operation.As a member of the Skywire? family of RF Transceiver Modules, this part is prominent in many specifications.3.5V~4.3V voltage can be supplied by the RF Transceiver.RF Transceiver Modules operate at 800MHz 1.9GHz Hz.Many applications use this Transceiver with Through Hole mounted.

NL-SW-EVDO-V Features


Through Hole
Bulk package
3.5V~4.3V volts


NL-SW-EVDO-V Applications


There are a lot of NimbeLink, LLC
NL-SW-EVDO-V RF Transceiver Modules applications.


  • LoT applications
  • Power Amplifier (PA)
  • Low Noise Amplifier (LNA)
  • Transmit
  • Receive
  • Switch
  • Power management
  • Internet of Things (IoT)
  • Secure Payment
  • Home and Security
