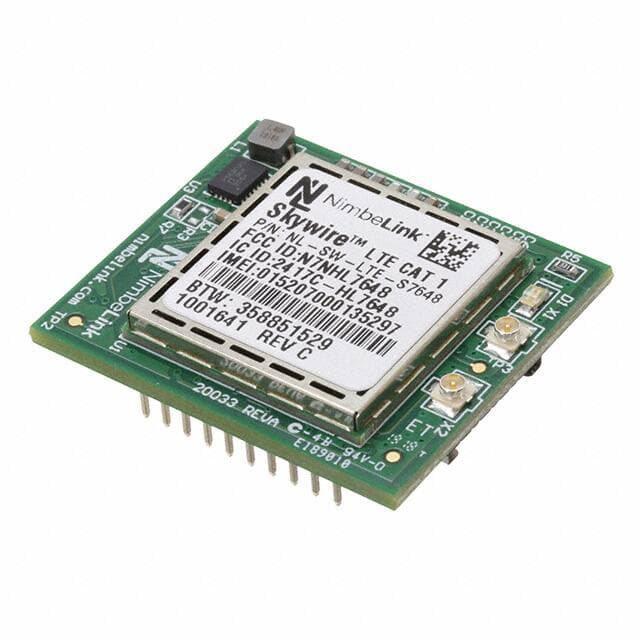

NimbeLink, LLC NL-SW-LTE-S7648

Manufacturer No:

NL-SW-LTE-S7648

Manufacturer:

NimbeLink, LLC

Package:

20-DIP Module

Description:

700MHz 1.7GHz 2.1GHz Cellular -40°C~85°C 3V~5.5V UART, USB Tube Antenna Not Included, U.FL 10Mbps 4G LTE CAT-1 (AT&T/T-Mobile) 20-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NL-SW-LTE-S7648 information

NimbeLink, LLC NL-SW-LTE-S7648 technical specifications, attributes, parameters and parts with similar specifications to NimbeLink, LLC NL-SW-LTE-S7648.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
20-DIP Module

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
Skywire® LTE CAT 1

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
3V~5.5V

Frequency
700MHz 1.7GHz 2.1GHz

Data Rate
10Mbps

Protocol
4G LTE CAT-1 (AT&T/T-Mobile)

RF Family/Standard
Cellular

Antenna Type
Antenna Not Included, U.FL

Serial Interfaces
UART, USB

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NimbeLink, LLC NL-SW-LTE-S7648.

Datasheets:

nimbelinkllc-nlswltes7648-datasheets-5980.pdf

nimbelinkllc-nlswltes7588v-datasheets-7325.pdf

nimbelinkllc-nlswltes7648-datasheets-5982.pdf

NL-SW-LTE-S7648 Overview

The RF Transceiver' mounting method adopted is Through Hole.It is designed to provide optimal performance by utilizing the Tube package.-40°C~85°C should be the operating temperature when Transceiver is operating.This RF Transceiver Module belongs to the Skywire® LTE CAT 1 family.It is possible for the RF Transceiver to supply voltages of 3V~5.5V.There is 700MHz 1.7GHz 2.1GHz frequency set for the RF Transceiver Module.

NL-SW-LTE-S7648 Features

Through Hole
Tube package
3V~5.5V volts

NL-SW-LTE-S7648 Applications

There are a lot of NimbeLink, LLC
NL-SW-LTE-S7648 RF Transceiver Modules applications.

Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting

User Guide
