ONSEMI NCV7808BD2TR4G
Manufacturer No:
NCV7808BD2TR4G
Manufacturer:
Package:
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Description:

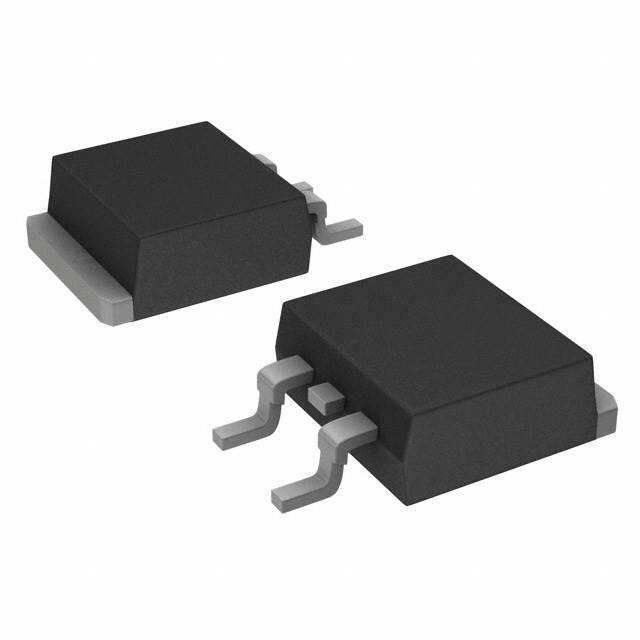

Fixed 2.54mm NCV7808 PMIC Automotive, AEC-Q100 Series 3 TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NCV7808BD2TR4G information
ONSEMI NCV7808BD2TR4G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCV7808BD2TR4G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time
- 5 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
- Number of Pins
- 3
- Operating Temperature
- -40°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- Automotive, AEC-Q100
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Subcategory
- Other Regulators
- Packing Method
- TAPE AND REEL
- Technology
- BIPOLAR
- Terminal Position
- SINGLE
- Terminal Form
- GULL WING
- Number of Functions
- 1
- Terminal Pitch
- 2.54mm
- Pin Count
- 3
- JESD-30 Code
- R-PSSO-G2
- Number of Outputs
- 1
- Voltage - Input (Max)
- 35V
- Output Voltage
- 8V
- Output Type
- Fixed
- Max Output Current
- 1A
- Output Configuration
- Positive
- Quiescent Current
- 8mA
- Accuracy
- 4 %
- Output Voltage 1
- 8V
- Number of Regulators
- 1
- Min Input Voltage
- 35V
- Protection Features
- Over Temperature, Short Circuit
- Voltage Dropout (Max)
- 2V @ 1A Typ
- PSRR
- 62dB (120Hz)
- Dropout Voltage
- 2V
- Dropout Voltage1-Nom
- 2V
- Power Supply Rejection Ratio (PSRR)
- 62dB
- Voltage Tolerance-Max
- 5%
- Output Voltage Accuracy
- 4 %
- Height Seated (Max)
- 4.572mm
- Radiation Hardening
- No
Download datasheets and manufacturer documentation for ONSEMI NCV7808BD2TR4G.
Datasheets:
ReachStatement:
NCV7808BD2TR4G Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-263-3, D2Pak (2 Leads + Tab), TO-263AB case is used for packaging. As you can see, the IC chip has 2 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 3 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is NCV7808. The component shown here is a typical Other Regulators component. There is a way of packing the regulator that is called TAPE AND REEL. To meet operation requirements, the voltage regulator IC has a maximum output current of 1A. It operates in the 8mA Quiescent Current state. Among the Automotive, AEC-Q100 Series, the IC voltage regulator is one of the most popular models.
NCV7808BD2TR4G Features
2V dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
NCV7808BD2TR4G Applications
There are a lot of ON Semiconductor
NCV7808BD2TR4G Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
