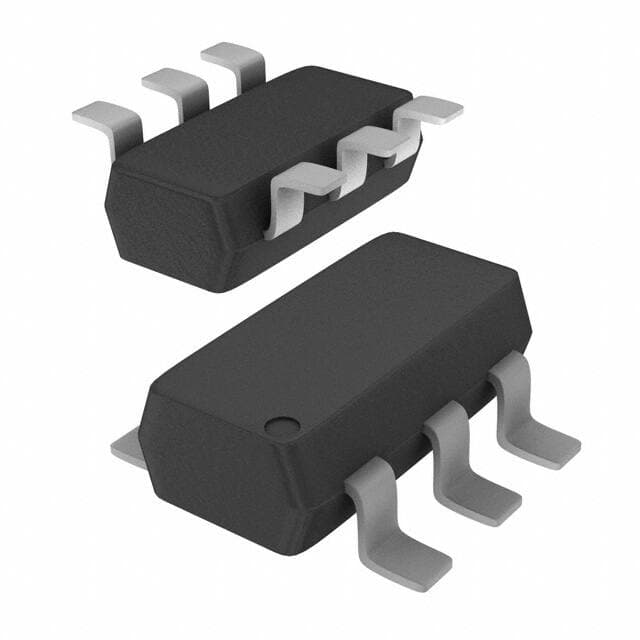

ONSEMI NCS2502SNT1G

Manufacturer No:

NCS2502SNT1G

Manufacturer:

ONSEMI

Package:

SOT-23-6 Thin, TSOT-23-6

Description:

80mA per Channel 3μA 50 dB Instrumentational OP Amps 5V 5V~10V ±2.5V~5V NCS2502 6 Pins SOT-23-6 Thin, TSOT-23-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCS2502SNT1G information

ONSEMI NCS2502SNT1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCS2502SNT1G.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-6 Thin, TSOT-23-6

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.95mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
NCS2502

Pin Count
6

JESD-30 Code
R-PDSO-G6

Operating Supply Voltage
5V

Number of Circuits
1

Operating Supply Current
650μA

Nominal Supply Current
650μA

Output Current
80mA

Slew Rate
230V/μs

Amplifier Type
Current Feedback

Common Mode Rejection Ratio
50 dB

Current - Input Bias
3μA

Voltage - Supply, Single/Dual (±)
5V~10V ±2.5V~5V

Output Current per Channel
80mA

Input Offset Voltage (Vos)
8mV

Gain Bandwidth Product
110MHz

Voltage - Input Offset
8mV

Length
3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCS2502SNT1G.

PCN Obsolescence/ EOL:

onsemiconductor-mr2535lrl-pcnobsolescenceeol-8147.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCS2502SNT1G Overview

There is a SOT-23-6 Thin, TSOT-23-6 case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the Current Feedback-type. Upon delivery, op amp ic is packaged in a Tape & Reel (TR) case. We are approaching the 6h termination of the year. In total, there are 6 pins on this op amp ic. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. The input offset voltage is 8mV. This electrical part should be mounted using type Surface Mount. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -40°C~85°C . The buffer amplifier is capable of operating from a supply current of 650μA . This op amp contains 1 circuits. The operating supply voltage of the buffer op amp is rated at 5V.

NCS2502SNT1G Features

6 Pins

NCS2502SNT1G Applications

There are a lot of ON Semiconductor
NCS2502SNT1G Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
