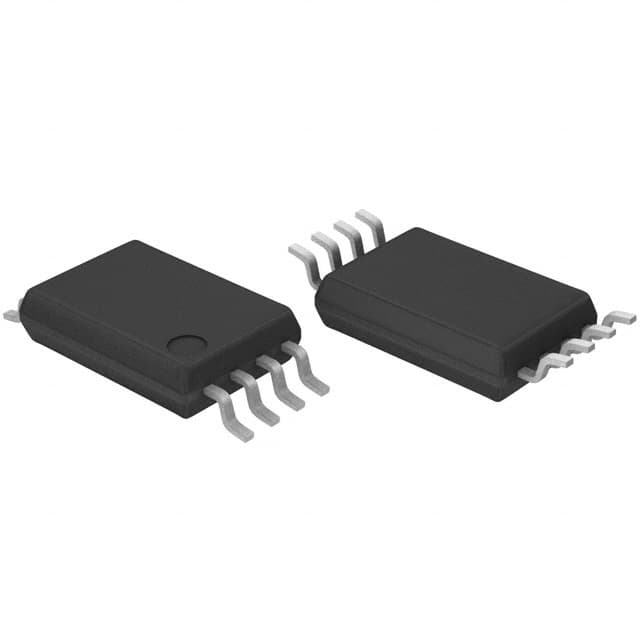

ONSEMI NCP4523G1T1G

Manufacturer No:

NCP4523G1T1G

Manufacturer:

ONSEMI

Package:

8-LSSOP, 8-MSOP (0.110, 2.80mm Width)

Description:

Converter, RF Unit 2.8V 260 Cel DUAL Specialized Voltage Regulator -40°C~85°C NCP4523 8 Pins 8 Terminations 8-LSSOP, 8-MSOP (0.110, 2.80mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP4523G1T1G information

ONSEMI NCP4523G1T1G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP4523G1T1G.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-LSSOP, 8-MSOP (0.110, 2.80mm Width)

Number of Pins
8

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Applications
Converter, RF Unit

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Max Power Dissipation
300mW

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Number of Outputs
3

Qualification Status
Not Qualified

Output Type
Fixed

Voltage - Input
3.3V~6V

Output Current
80mA

Voltage - Output
2.8V

Output Voltage 1
2.8V

Max Input Voltage
6V

Dropout Voltage
350mV

Dropout Voltage1-Nom
0.22V

Voltage Tolerance-Max
2%

Input Voltage Absolute-Max
7V

Output Voltage 2
2.8V

Length
2.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI NCP4523G1T1G.

Datasheets:

onsemiconductor-ncp4523g1t1-datasheets-2211.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NCP4523G1T1G Overview

A total of 3outputs are supported by this voltage regulator. The rectifier regulator is packaged in 8-LSSOP, 8-MSOP (0.110, 2.80mm Width) to facilitate transportation. We are ready to ship in Tape & Reel (TR) packages. An output voltage of 2.8V is provided by this power supply regulator. For easy adaptability, there is a universal mount Surface Mount. There are a number of applications targeted at Converter, RF Unit. As a precaution, it is recommended to set the operating temperature to -40°C~85°C to prevent malfunctions. This external regulator requires a voltage input of 3.3V~6V. There are 8terminals on the voltage regulator. Pinouts for the rectifier regulator begin at 8. If you are looking for pin-to-pin solutions for a specific application, please search NCP4523. There is a Surface Mount on the board for mounting to a PCB or other board. 8pins are present on the power regulators. The voltage controller plays an important role in the industry, as do other Other Regulators. Currently, the electrical regulator should output 80mA.

NCP4523G1T1G Features

Widely used in Converter, RF Unit applications

NCP4523G1T1G Applications

There are a lot of ON Semiconductor
NCP4523G1T1G Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
