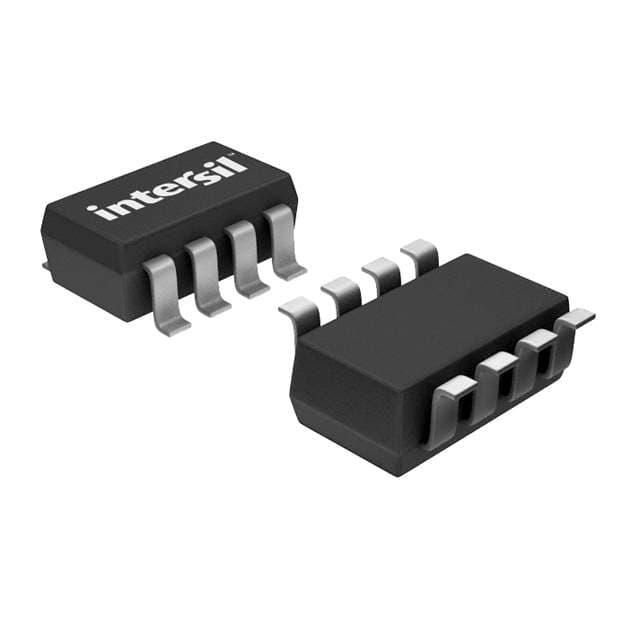

Renesas ISL5121IH-T

Manufacturer No:

ISL5121IH-T

Manufacturer:

Renesas

Package:

SOT-23-8

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 8 Pins 3.3V SOT-23-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL5121IH-T information

Renesas ISL5121IH-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL5121IH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-8

Packaging
Tape & Reel (TR)

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Resistance
30Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Number of Channels
1

Operating Supply Current
100pA

Number of Bits
2

Throw Configuration
SPST

Supply Type
Single

Off-state Isolation-Nom
76 dB

On-state Resistance Match-Nom
1Ohm

Switching
BREAK-BEFORE-MAKE

Normal Position
NC

Height Seated (Max)
1.45mm

Width
1.6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL5121IH-T.

Datasheets:

intersil-isl5121iht-datasheets-4652.pdf

ISL5121IH-T Overview

Packed in SOT-23-8, the electronic component is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. There are 8 terminations totally. By its 1 channels, the electronic component provides high-quality output. With a 3.3V voltage supply, the electrical component should be turned on and run. 8 pins are injected to the electronic part body. This digital multiplexer has 30Ohm internal resistance. This switch device is a typical Multiplexer or Switches. A cost-effective Single supply type analogue multiplexer. 100pA current would be enough for this multiplexer to operate. This analog switch ic utilizes SEPARATE OUTPUT output. The switches should not operate in an environment where the temperature is higher than 85°C. It is able to conduct in a 2-bit way. It requires a minimum voltage of 3V to supply the switch device.

ISL5121IH-T Features

1 Channels
100pA Supply Current
2-Bit

ISL5121IH-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL5121IH-T Analog Switches & Multiplexers ICs applications.

High-Voltage
Transmit
Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
