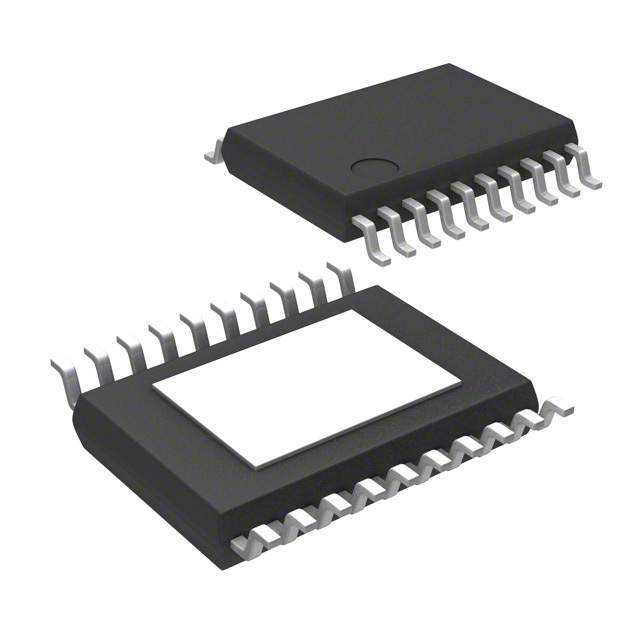

Renesas EL1528CREZ-T7

Manufacturer No:

EL1528CREZ-T7

Manufacturer:

Renesas

Package:

Description:

20 Terminations Receivers 2 Bits 2 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL1528CREZ-T7 information

Renesas EL1528CREZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL1528CREZ-T7.

Type
Parameter

Mount
Surface Mount

Published
2002

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
MATTE TIN

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

JESD-30 Code
R-PDSO-G20

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Supply Voltage-Max (Vsup)
12V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
5V

Differential Output
YES

Driver Number of Bits
2

Length
6.5mm

Height Seated (Max)
1.2mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL1528CREZ-T7.

Datasheets:

intersil-el1528crezt7-datasheets-5468.pdf

EL1528CREZ-T7 Overview

For driving and receiving signals from data, this wide receiver has 20 terminations integrated.This transceiver is packaged with 20 market standard pinoutsThrough optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.This ic receiver provided a 2-bit resolution capability. The interface IC type of ic receiver is LINE DRIVER, which is used to control and manage the sharing of information between devices.The operating temperature for this transceiver module is not allowed to be above 85°C.The manufacturer recommends this transceiver module be handled with a supply voltage lower than 12V.In order to run this module isolated transceiver, you should apply at least 5V voltage supply to it.The operating temperature should be kept above -40°C.

EL1528CREZ-T7 Features

20 pin count

EL1528CREZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL1528CREZ-T7 Drivers/Receivers/Transceivers applications.

Televisions
Cell phones
Wireless modems
Remote controls
Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
