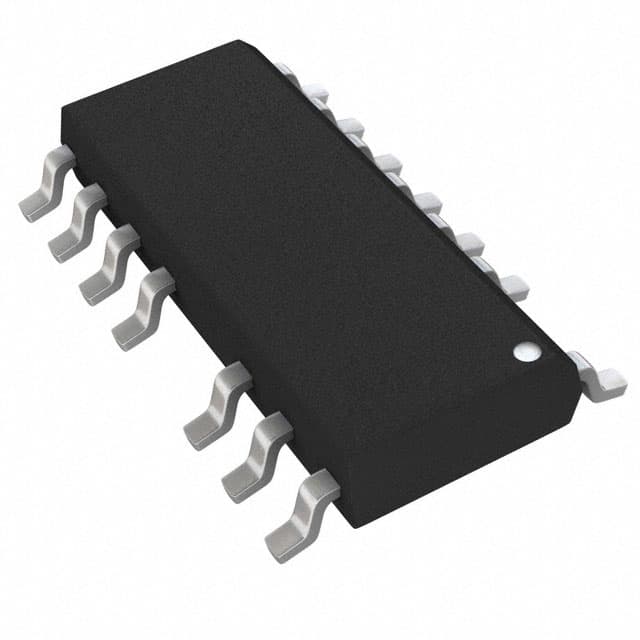

ONSEMI NCP1399APDR2G

Manufacturer No:

NCP1399APDR2G

Manufacturer:

ONSEMI

Package:

16-SOIC (0.154, 3.90mm Width), 14 Leads

Description:

Current Mode Resonant Controller with Integrated High Voltage Drivers, High Performance

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1399APDR2G information

ONSEMI NCP1399APDR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1399APDR2G.

Type
Parameter

fsw Typ (kHz)
Up to 500

Stand-by Mode
Yes

UVLO (V)
8.9

VCC Max (V)
20

MSL Type
3

Latch
Yes

MSL Temp (°C)
260

Container Type
REEL

Package Type
SOIC-16 NB

Container Qty.
2500

Topology
LLC

Control Mode
Current Mode

Short Circuit Protection
Yes

Soft Start
Yes

Drive Cap. (mA)
500 / 1000

Case Outline
751DU

Download datasheets and manufacturer documentation for ONSEMI NCP1399APDR2G.

Datasheet:

6023a988be14e9a8af520cc1fd33b1ac.pdf

Package Drawing:

059d2d57bd4685825c567665208074ed.pdf

The NCP1399 is a high performance current mode controller for half bridge resonant converters. This controller implements 600 V gate drivers, simplifying layout and reducing external component count. The built−in Brown−Out input function eases implementation of the controller in all applications. In applications where a PFC front stage is needed, the NCP1399 features a dedicated output to drive the PFC controller. This feature together with dedicated skip mode technique further improves light load efficiency of the whole application. The NCP1399 provides a suite of protection features allowing safe operation in any application. This includes: overload protection, over−current protection to prevent hard switching cycles, brown−out detection, open optocoupler detection, automatic dead−time adjust, overvoltage (OVP) and overtemperature (OTP) protections.

Application

High power AC/DC adapters for notebooks
Offline battery chargers
Industrial and medical power sources
Computing power supplies

End Product

Notebook Adapters
LCD-TV / LED-TV

Feature

High−Frequency Operation from 20 kHz up to 750 kHz
Current Mode Control Scheme
Automatic Dead−time with Maximum Dead−time Clamp

User Guide
